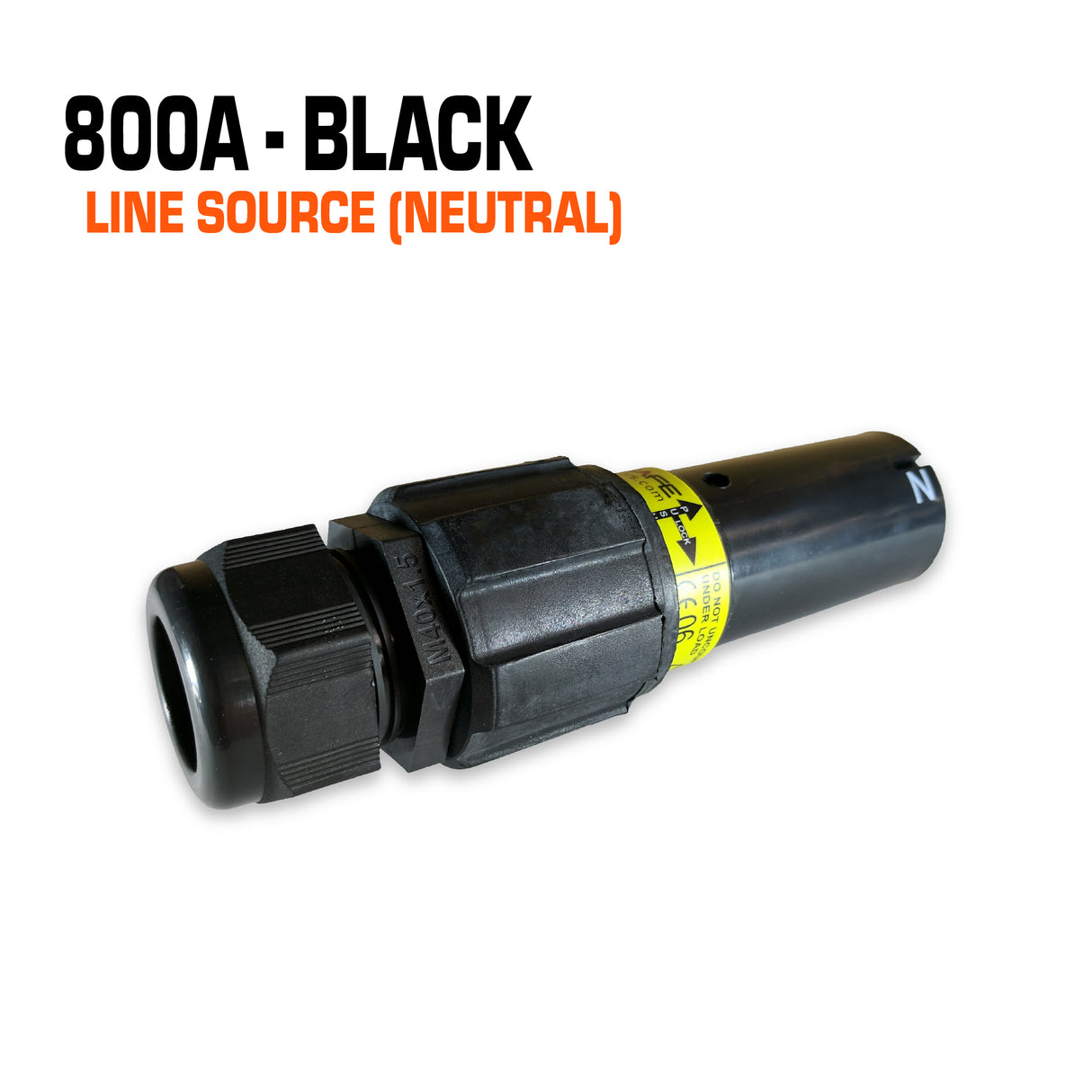

PowerSafe Line Source 800A Black

  • Sale
  • Regular price $104.50 ( $95.00 +GST )



Powersafe Single Pole Connectors

Phase 3’s Powersafe single pole connectors are the highest rated, safest and finest quality powerlock connectors as used by the power distribution, events, military and cable assembly industries worldwide. Powersafe connectors are available as inline plugs and panel mount sockets that easily terminate to low voltage copper power cables (i.e H07RN-F) using industry standard crimp tools or set-screw contacts.

Key Features

  • Waterproof & Dust Protection Rating (IP67)
  • Colour Coded Keyed Single Pole Connector ( KSPC )
  • Finger-Proof Protection against electric shock (IP2X)
  • Flame Retardant Materials (UL94-VO)
  • Improved Impact Resistance
  • Environmental Caps available
  • UL Certified Product

Line Source Connector

  • Line Source connector with finger proof contacts to prevent accidental touching of live elements.
  • These connectors are supplied with an M40A or M40S cable gland for cables up to 19mm diameter or a larger M40B cable gland for cables up to 32mm diameter.
  • The connectors are supplied colour coded and mechanically keyed to prevent connection errors.
  • The Line Source will mate with a Line Drain or Panel Mounted Drain connector.
  • Available in crimp version for cables up to 300mm sq and set screw version for cables up to 150mm sq cable sections.




Part Number Chart




Line ( 800A )

Panel ( 800A )

Colour/Key

Drain

Source

Drain

Source

Red

SLD-1-R-C240-M40B

SLS-1-R-C240-M40B

SPD-1-R-T8

SPS-1-R-T8

White

SLD-2-W-C240-M40B

SLS-2-W-C240-M40B

SPD-2-W-T8

SPS-2-W-T8

Blue

SLD-3-BL-C240-M40B

SLS-3-BL-C240-M40B

SPD-3-BL-T8

SPS-3-BL-T8

Black

SLD-N-BK-C240-M40B

SLS-N-BK-C240-M40B

SPD-N-BK-T8

SPS-N-BK-T8

Green

SLD-E-GN-C240-M40B

SLS-E-GN-C240-M40B

SPD-E-GN-T8

SPS-E-GN-T8



*Picture are for illustrator purposes and may not represent the final product. We continue to improve and revise the product to provide the best quality product.
