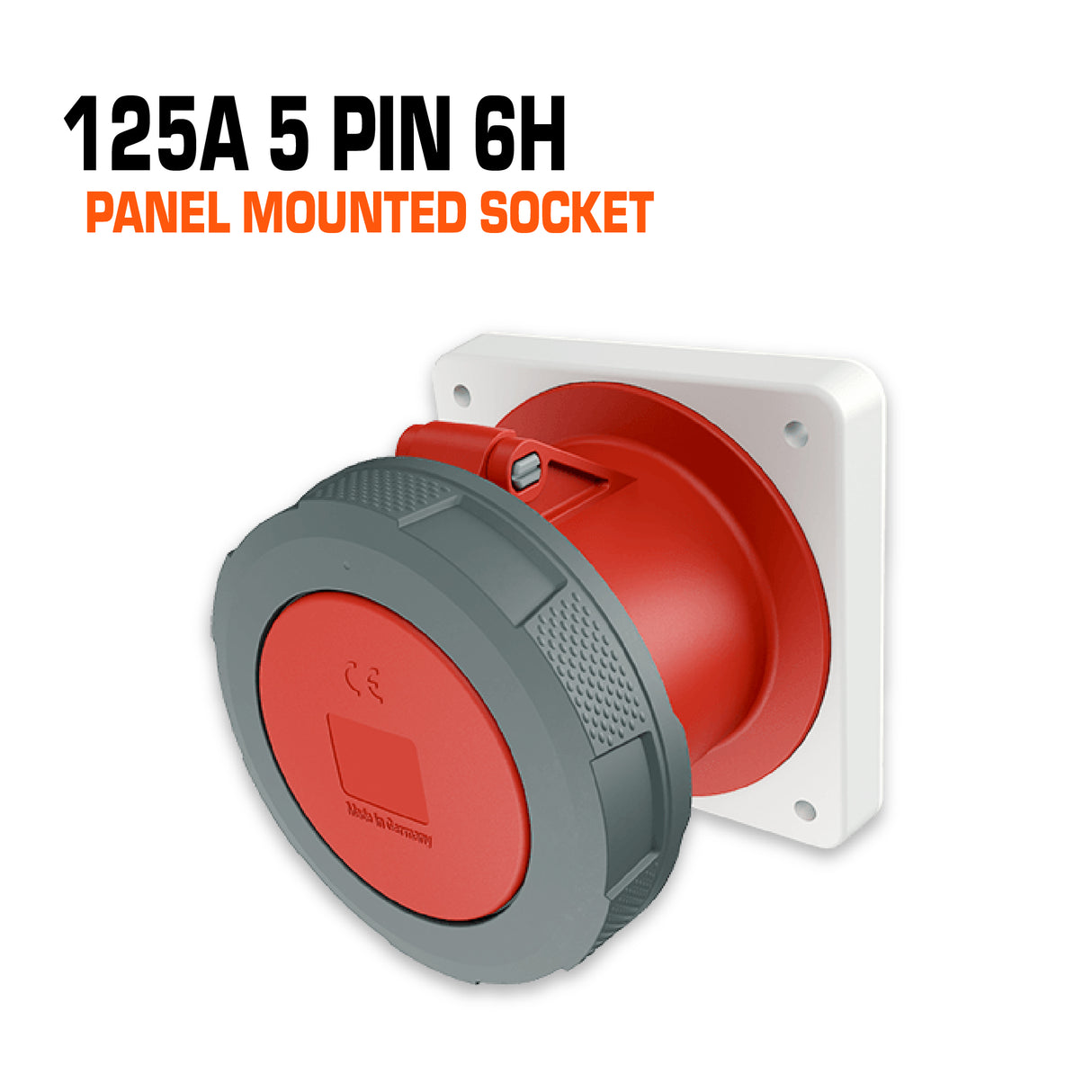

Mennekes IP67 Panel Mounted Socket - 125A 5 PIN
- PN:1461
- Screw terminals
- X-Contact
- Straight
- Products with pilot contact on request
Ampere | 125 A |
---|---|
Poles | 5 p |
Voltage | 400 V |
Clock position | 6 h |
Hertz | 50-60 Hz |
Connection technology | Screw terminals |
Contact | X-CONTACT® |
Protection type | IP 67 |

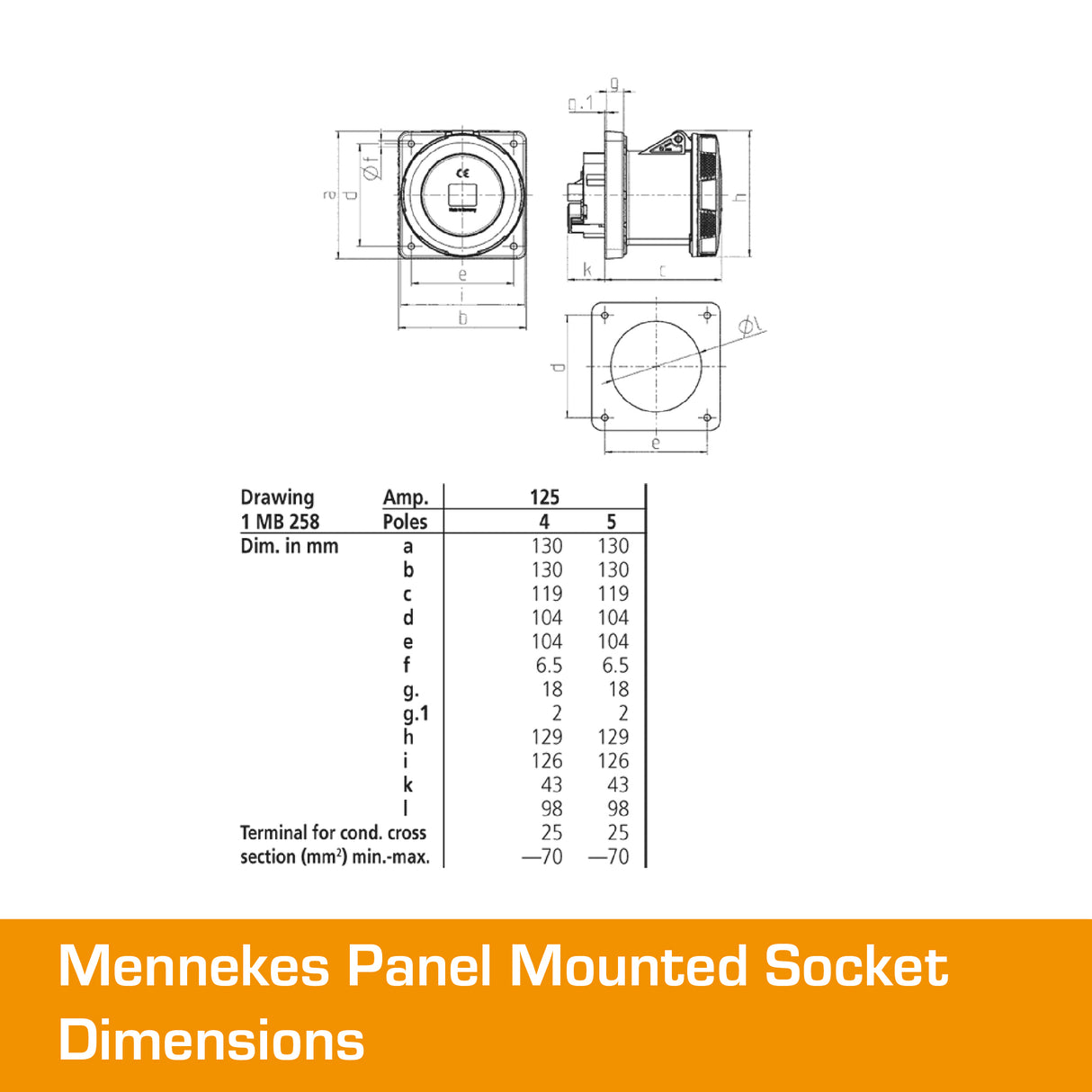

Flange | 130x130 mm |
Fixing hole | 104x104 mm |
Weight | 1256 g |
Declaration of Conformity | DE,VDE CN,CQC |
*Picture are for illustrator purposes and may not represent the final product. We continue to improve and revise the product to provide the best quality product
