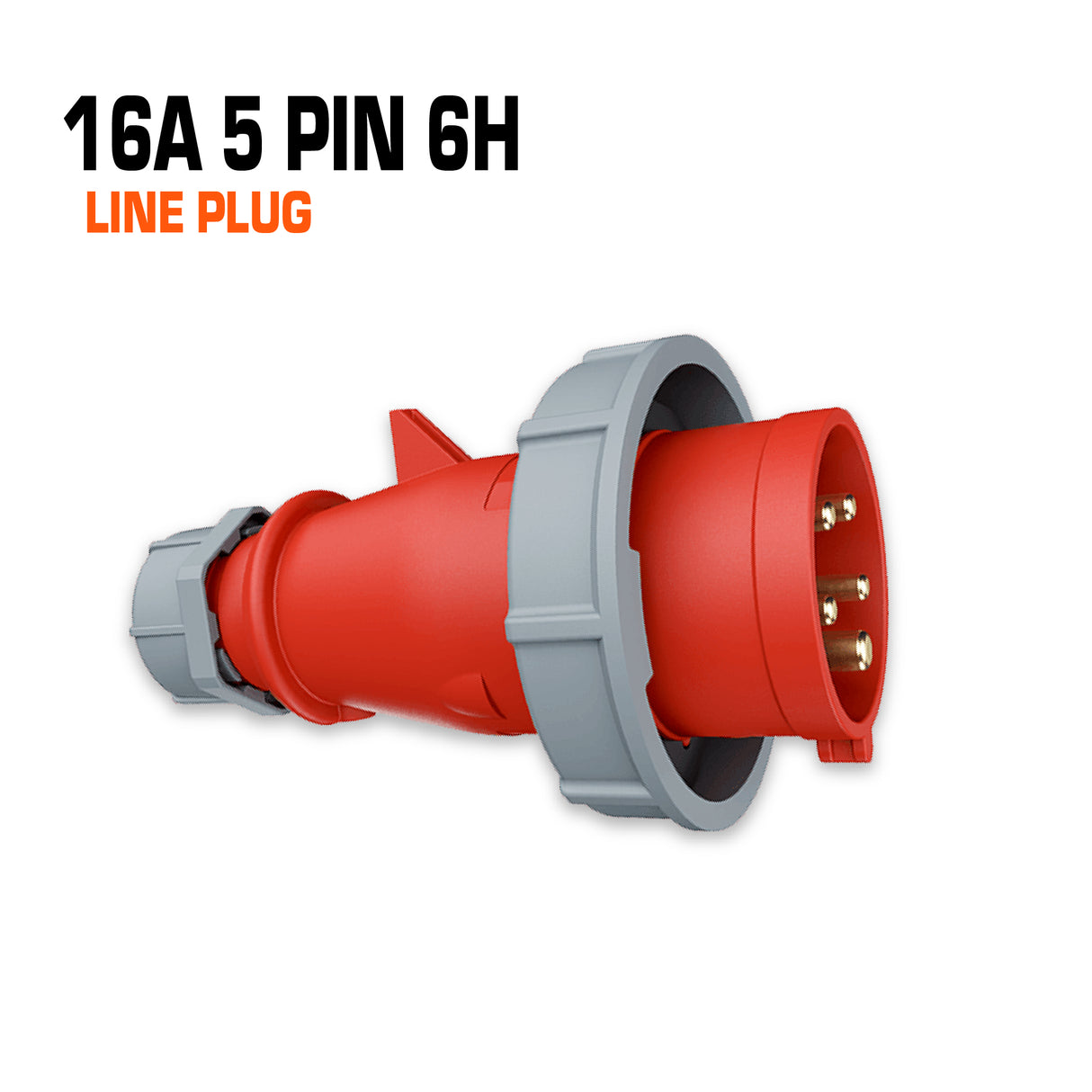

Mennekes IP67 Line Plug - 16A 5 PIN
- AM-TOP- 288
- Screw terminals
- Single part body
- Cable gland and sealing
- Strain relief and protection against kinking
| Ampere | 16 A |
|---|---|
| Poles | 5 p |
| Voltage | 400 V |
| Clock position | 6 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals |
| Contact | standard |
| Protection type | IP 67 |
| Weight | 206 g |
| Declaration of Conformity | DE,VDE CN,CQC |
*Picture are for illustrator purposes and may not represent the final product. We continue to improve and revise the product to provide the best quality product
