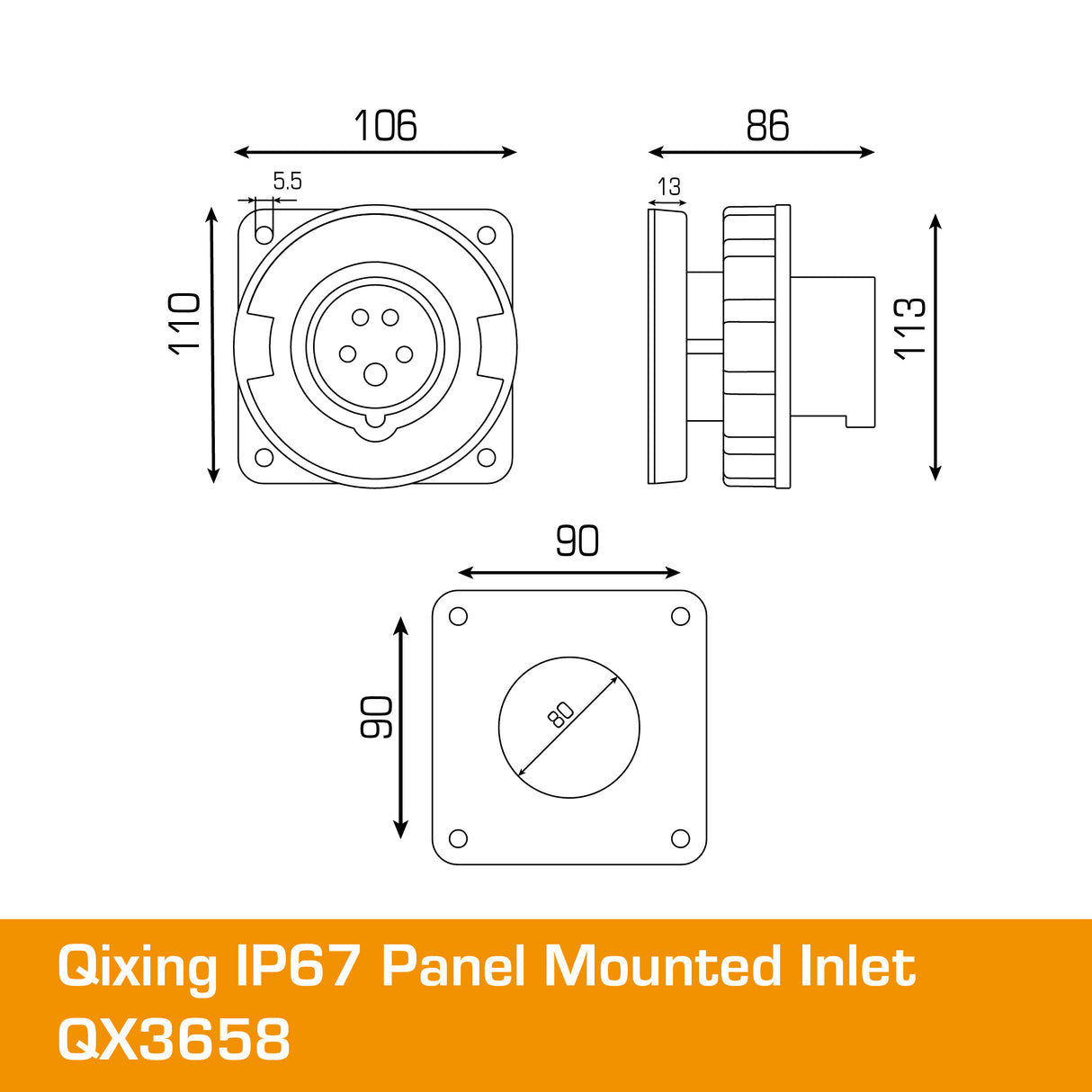

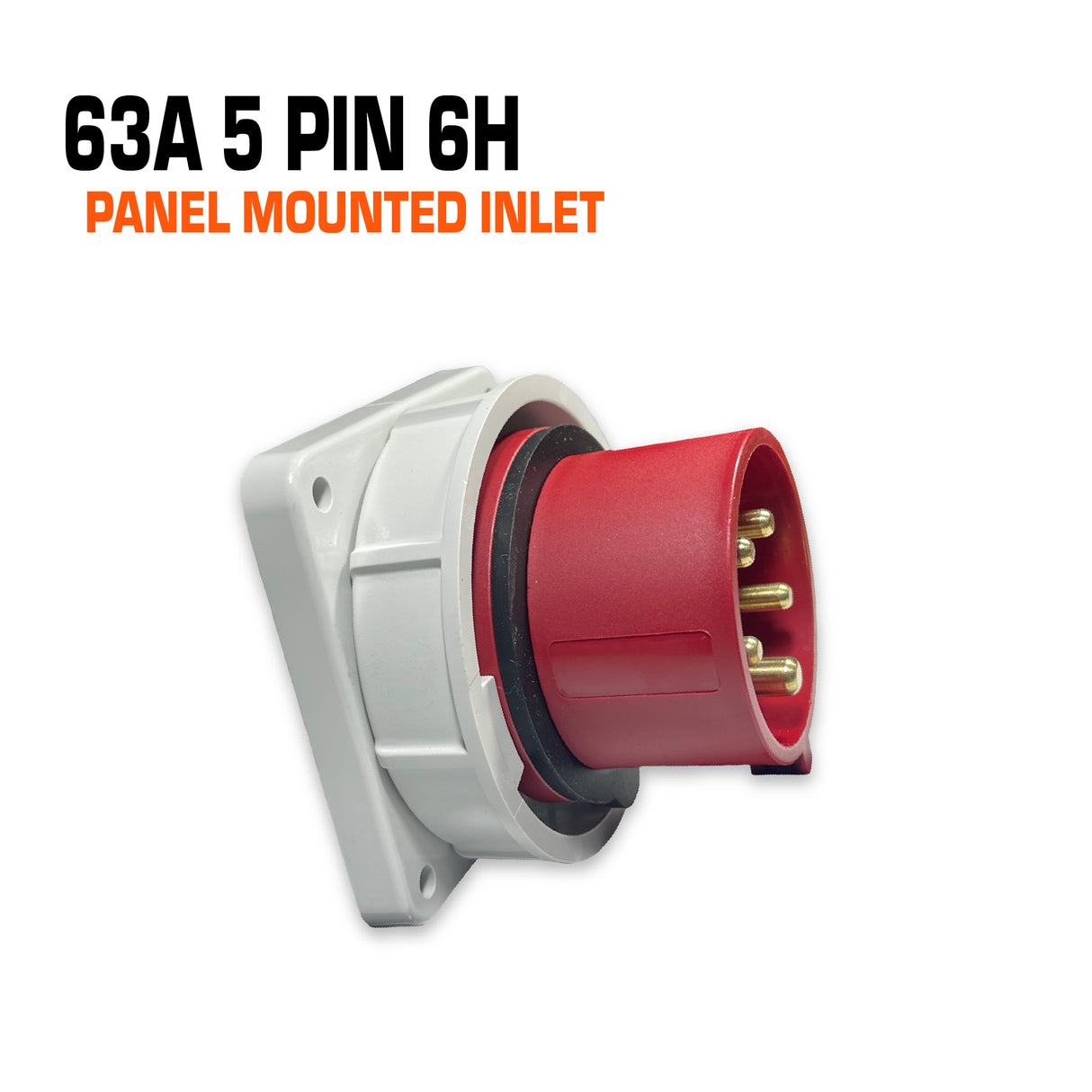

Qixing IP67 Straight Panel Mounted Inlet - 63A 5 Pin QX3658

  • Sale
  • Regular price $77.75 ( $70.68 +GST )



Qixing IP67 Panel Mounted Inlet - 63A 5 PIN

  • Panel Mounted Inlet QX3658
  • Screw terminals
  • Nickel-plated contacts
  • A retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking.

Specifications

Part Number QX3658
Ampere 32 A
Poles 5 P
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Phase Three phase
Protection type IP 67
Weight 887 g
Conform to European / International Standards EN/IEC 60309-2



*Picture are for illustrator purposes and may not represent the final product. We continue to improve and revise the product to provide the best quality product. RR
