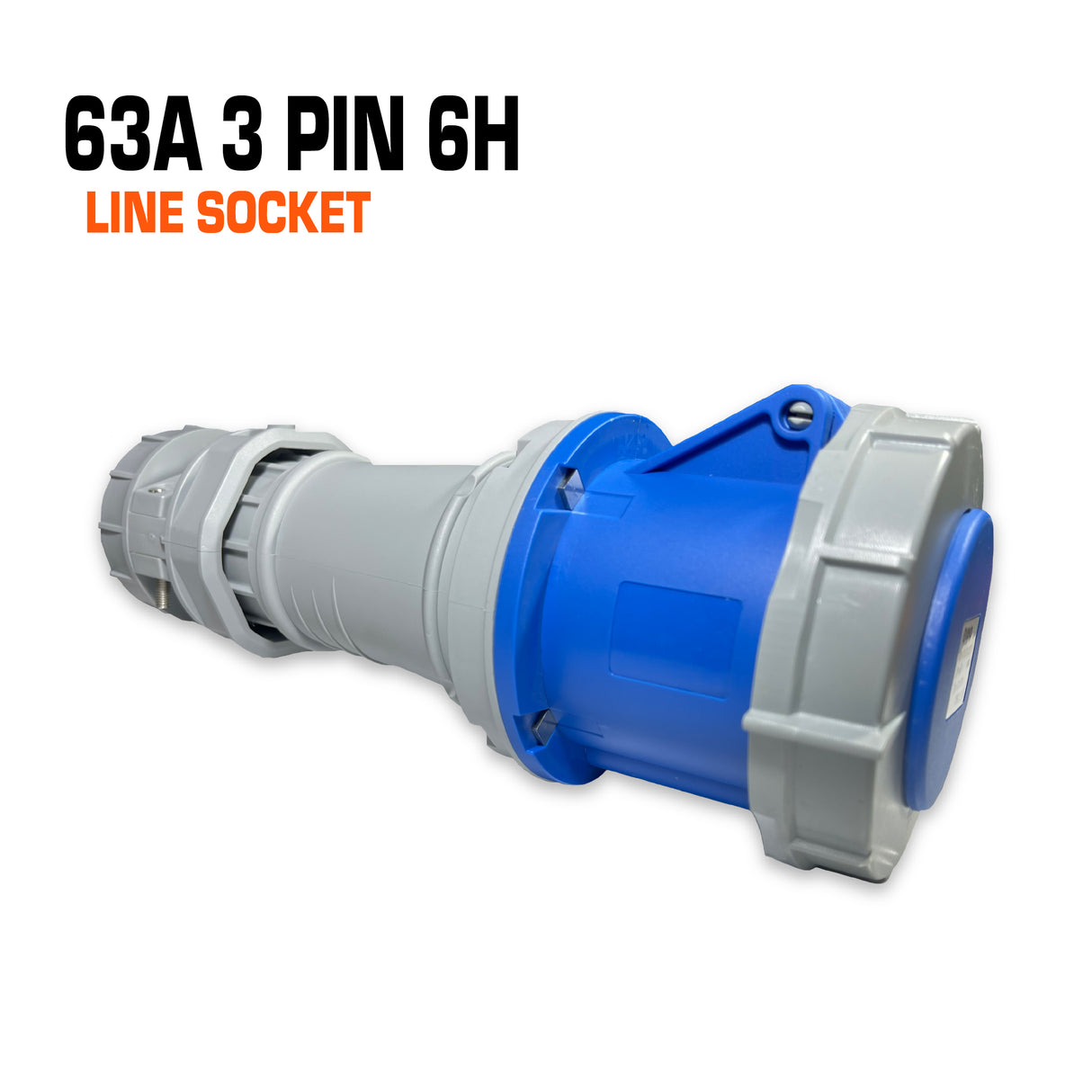

Qixing IP67 Line Socket -63A 3 Pin QX1574
Qixing IP67 Line Socket -63A 3 Pin QX1574
Qixing IP67 Line Socket -63A 3 Pin QX1574

Qixing IP67 Line Socket -63A 3 Pin QX1574

  • Sale
  • $91.73 ( $83.39 +GST )

Qixing IP67 Line Socket - 63A 3 PIN

  • QX1574
  • Screw terminals
  • Nickel-plated contacts
  • A retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking.

Specifications

Part Number QX1574
Ampere 63 A
Poles 3 P
Voltage 200 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Phase Single Phase
Protection type IP 67
Weight 772 g
Conform to European / International Standards EN/IEC 60309-2



*Picture are for illustrator purposes and may not represent the final product. We continue to improve and revise the product. RR
