10mm² V90HT PVC 0.6/1kV Single Core Flex Red
Ralos | SKU:
3801074FD
$421.85
Unit price$0
/
Unavailable
$383.50 + GST
Couldn't load pickup availability
Description
Description

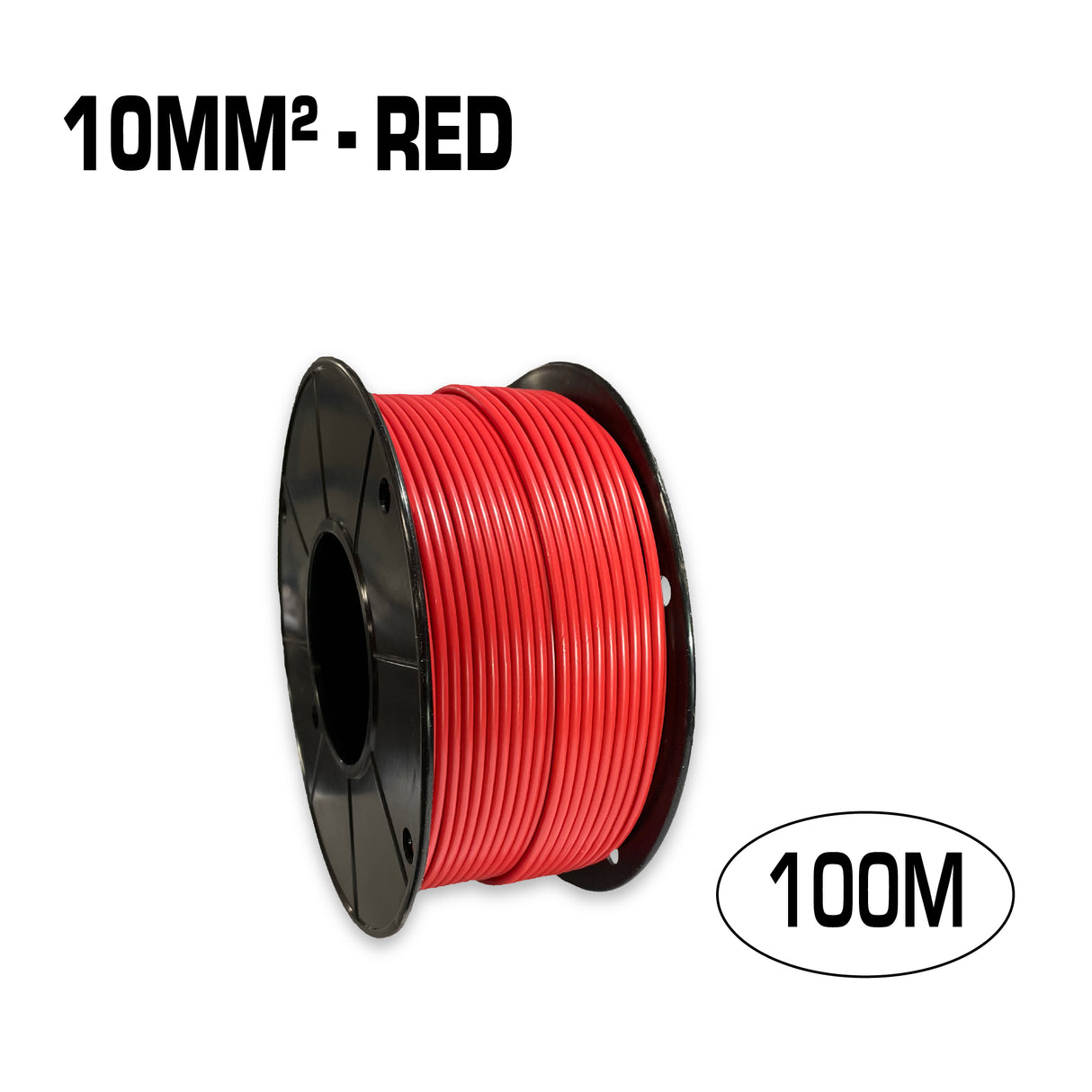

10mm2 V90HT PVC 0.6/1kV Single Core Flex Red
Suitable single core building / appliance wire for switchboard cabinet installation.
Australian wire colours are stocked ( Red, White, Blue, Black, Green/Yellow )
When purchasing this item, you are buying a 100M spool.
Feature
- Class 5 Copper Conductors
- Flexible and light weight cable
- Comes on a easy to handle spool
- Flame-retardant
- Tinned conductors
- Wide temperature range ( up to 105°C )
Specification
| Number of Cores | 1 |
| Nominal Conductor size (mm2) | 10 |
| Conductor | Tinned |
| Outer Jacket Colour | Red |
| Outer diameter (mm) | 6.5 |
| Minimum Bending Radius: | 3 x Diameter |
| Weight ( kg/m ) | 0.1383 |
| Nominal Voltage | 0.6/1 kV |
| Temperature range : | -20°C to +105°C |
*Picture are for illustrator purposes and may not represent the final product. We continue to improve and revise the product to provide the best quality product.
