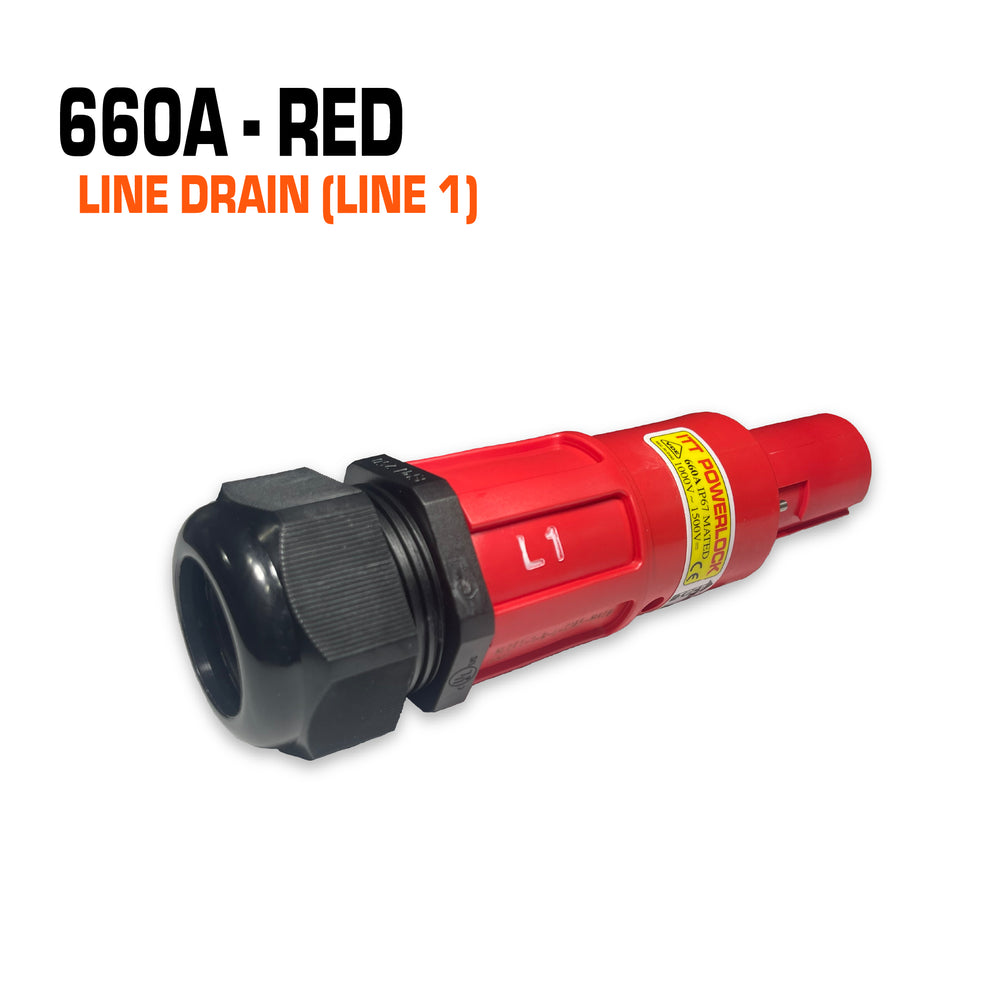

Powerlock Line Drain (Veam) - 660A Line 1 - Red

  • Sale
  • Regular price $121.55 ( $110.50 +GST )



660 Amp Powerlock Line Drain

The Veam PowerLock connector series for field installation power distribution systems offer the ultimate in safety and reliability under the most severe operating conditions. It offers peace of mind, by taking the risk out of supplying the high loads required for today's lighting & sound systems.

PowerLock connectors are plastic bodies single pole electrical connectors used in high current applications. For use in single and polyphase power distribution systems up to 660 amps, the range includes panel and cable mounted connectors, and associated accessories. PowerLock connectors are moisture ,impact resistant,meets IP67 in a mated condition and features insulated contact tips to prevent accidental touching of electrically live parts.

Notes:

  • Spare cotton pins available upon request.( Drain version )
  • 600A connectors
  • For cables up to 240mm2.
  • Crimp required to attached cable to contactor.
  • 300mm2 are available on request.
  •  Gland size suits 22-32 in diameter.

Part Numbers:

Colour Line/Phase 400A 660A
Red 1 NLDFT-1R-S120-M40A NLDFT-1R-C240-M40B
White 2 NLDFT-2W-S120-M40A NLDFT-2W-C240-M40B
Blue 3 NLDFT-3BL-S120-M40A NLDFT-3BL-C240-M40B
Black Neutral NLDFT-NBK-S120-M40A NLDFT-NBK-C240-M40B
Green Earth NLDFT-EGN-S120-M40A NLDFT-EGN-C240-M40B
