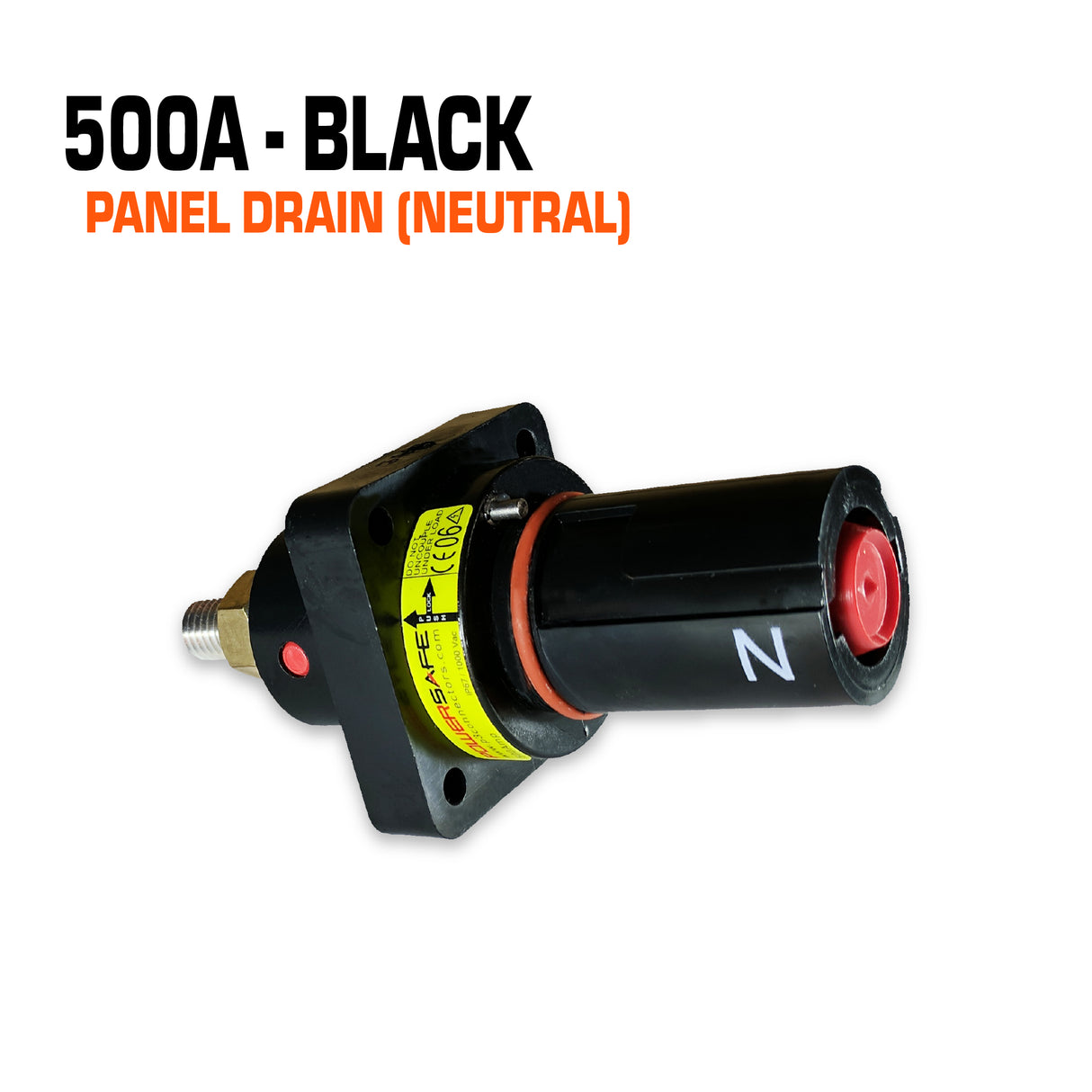

POWERSAFE Panel Drain 500A Black

*Interchangeable with POWERLOCK Panel Drain 400Amp Black

POWERSAFE Panel Drain 500A Black

Phase 3’s Powersafe single pole connectors are the highest rated, safest and finest quality powerlock connectors as used by the power distribution, events, military and cable assembly industries worldwide. Powersafe connectors are available as inline plugs and panel mount sockets that easily terminate to low voltage copper power cables (i.e H07RN-F) using industry standard crimp tools or set-screw contacts.

Key Features

• Waterproof & Dust Protection Rating (IP67)
• Colour Coded Keyed Single Pole Connector ( KSPC )
• Finger-Proof Protection against electric shock (IP2X)
• Flame Retardant Materials (UL94-VO)
• Improved Impact Resistance
• Environmental Caps available
• UL Certified Product

Panel Drain Connector

• Panel Drain connector with finger proof contacts to prevent accidental touching of live elements.
• These connectors are supplied with M12 threaded post termination as standard, to accept cable lugs.
• A secondary spring loaded pin is fitted to the connector which will engage with a
  slot in the Source connector version to prevent accidental disconnection under
  load.
• The connectors are supplied colour coded and mechanically keyed to prevent connection errors.
• The Panel Drain will mate with a Line Source connector
• 500A and 800A versions available
