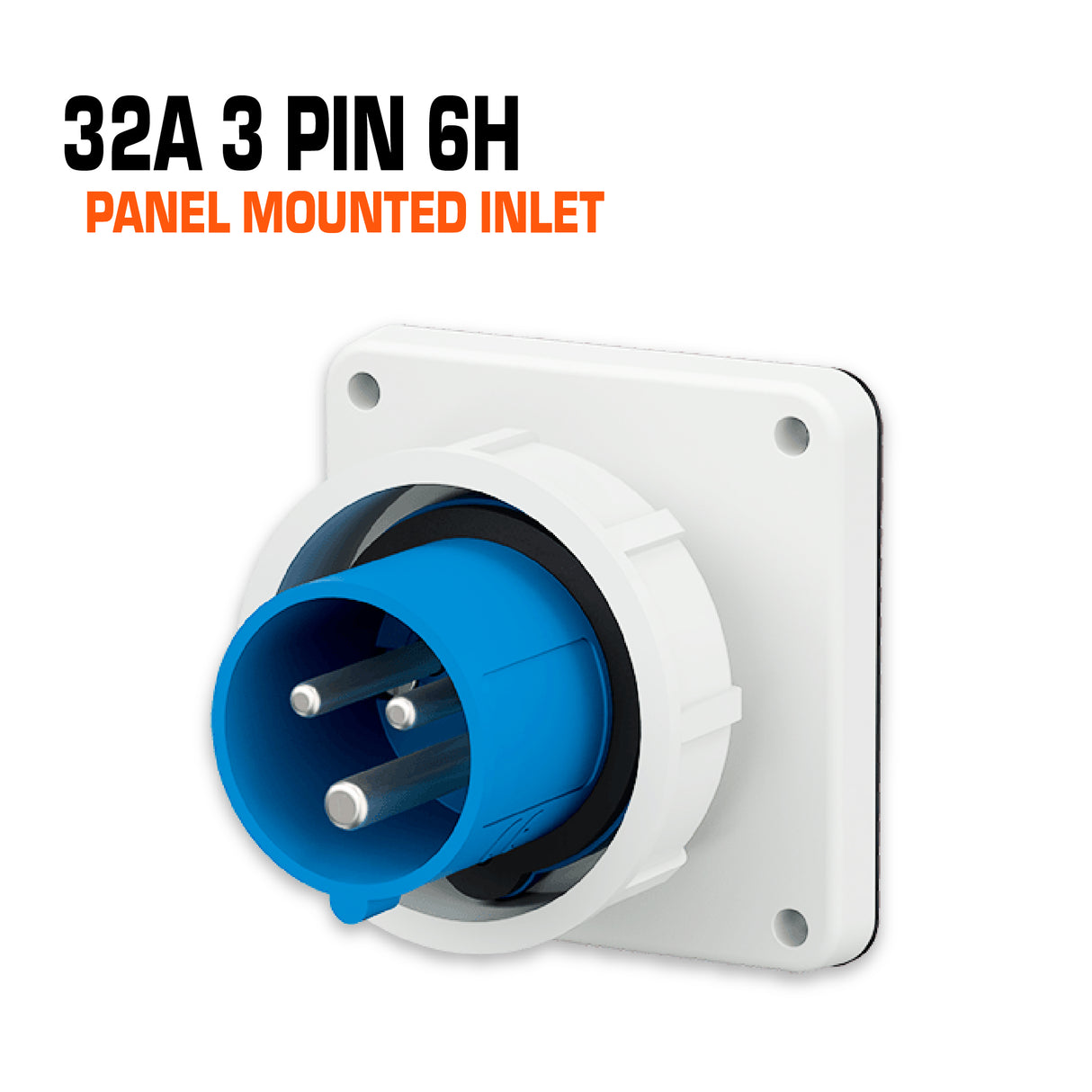

Mennekes IP44 Panel Mounted Inlet - 32A 3 PIN
- Panel Mounted Inlet 817
- Screw terminals
- Nickel-plated contacts
- A retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
Ampere | 32 A |
---|---|
Poles | 3 p |
Voltage | 230 V |
Clock position | 6 h |
Hertz | 50-60 Hz |
Connection technology | Screw terminals |
Contact | nickel plated contacts |
Protection type | IP 44 |
Weight | 198 g |
Declaration of Conformity | CN,CQC DE,VDE (ÜG) |
*Picture are for illustrator purposes and may not represent the final product. We continue to improve and revise the product to provide the best quality product
