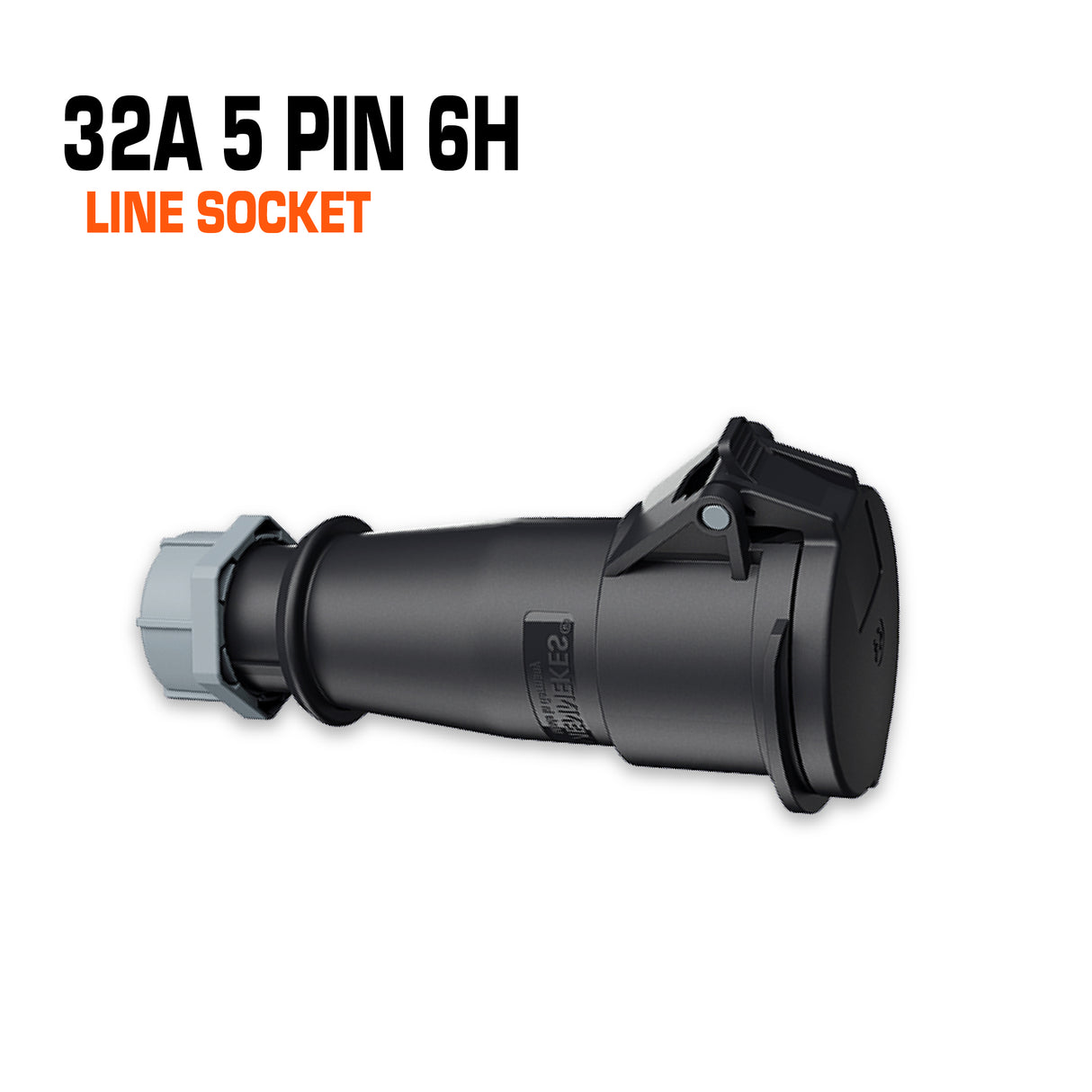

Mennekes IP44 Line Socket - 32A 5 PIN
- PN: 21039ZB
- screw terminals
- single part body
- with highly heat resistant contact carrier
- nickel plated contacts
- cable gland and sealing
- strain relief and protection against kinking
| Ampere | 32 A |
|---|---|
| Poles | 5 p |
| Voltage | 400 V |
| Clock position | 6 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals |
| Contact | highly heat resistant contact carrier nickel plated contacts |
| Protection type | IP 44 |
| Weight | 380 g |
| Declaration of Conformity | EAC (Zwangszulassung) |
*Picture are for illustrator purposes and may not represent the final product. We continue to improve and revise the product to provide the best quality product
