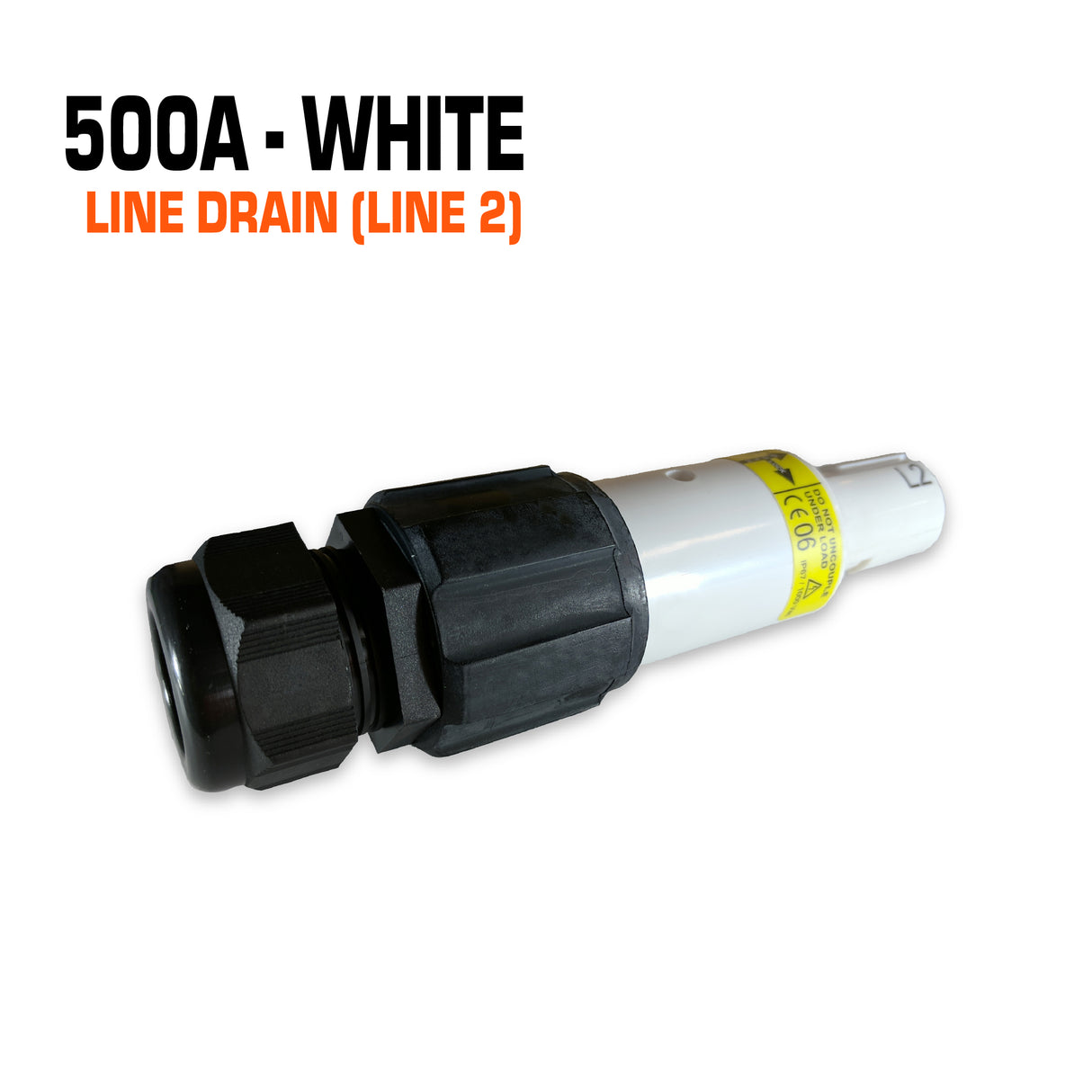

POWERSAFE Line Drain 500A White

*Interchangeable with POWERLOCK Line Drain 400Amp White 120mm² Set Screw

POWERSAFE Line Drain 500A White

Phase 3’s Powersafe single pole connectors are the highest rated, safest and finest quality powerlock connectors as used by the power distribution, events, military and cable assembly industries worldwide. Powersafe connectors are available as inline plugs and panel mount sockets that easily terminate to low voltage copper power cables (i.e H07RN-F) using industry standard crimp tools or set-screw contacts.

Key Features

• Waterproof & Dust Protection Rating (IP67)
• Colour Coded Keyed Single Pole Connector ( KSPC )
• Finger-Proof Protection against electric shock (IP2X)
• Flame Retardant Materials (UL94-VO)
• Improved Impact Resistance
• Environmental Caps available
• UL Certified Product

Line Drain Connector

• Line Drain connector with finger proof contacts to prevent accidental touching of live elements.
• These connectors are supplied with an M40A or M40S cable gland for cables up to 19mm diameter or a larger M40B cable gland for cables up to 32mm diameter.

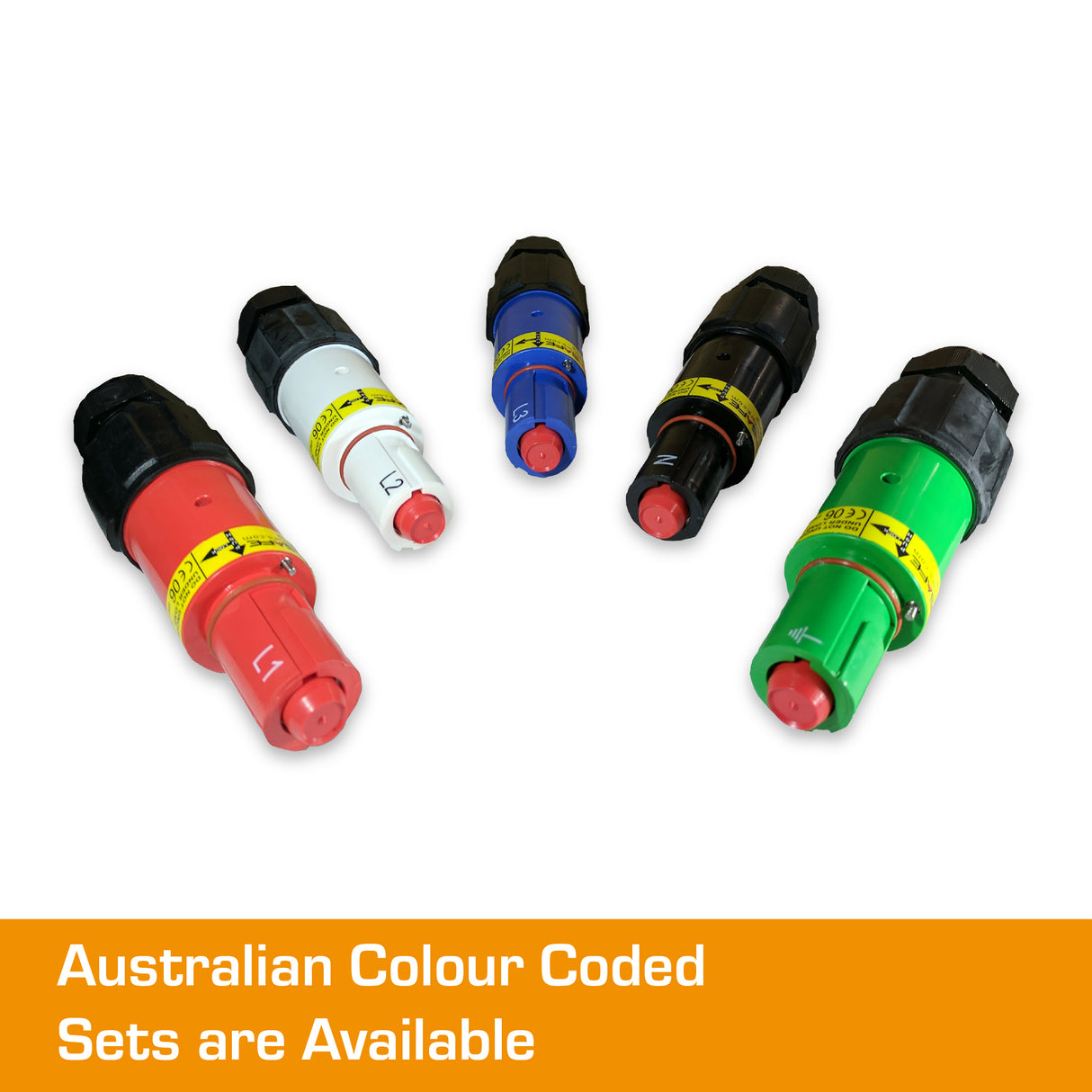

• The connectors are supplied colour coded and mechanically keyed to prevent connection errors.
• A secondary spring loaded pin is fitted to the connector which will engage with a slot in the Source connector version to prevent accidental disconnection under load.
• The Line Drain will mate with a Line Source or Panel Mounted Source connector.
• Available in crimp version for cables up to 300mm sq and set screw version for cables up to 150mm sq cable sections.
