Custom-Built 3 Phase Extension Leads Ready in Just 2 Hours

Australian Panel Outlet 40A 4 PIN

GEN3  |  SKU: AUSO440
$55.07
$50.06 + GST

Ships Fast Australia Wide

30-Day Easy Returns

Trusted by Australia's Biggest Events

Pickup available at 28 Cook Street

Usually ready in 1 hour

Enjoy Free Shipping

On Orders Over $249*

Excludes heavy items & remote areas


Description

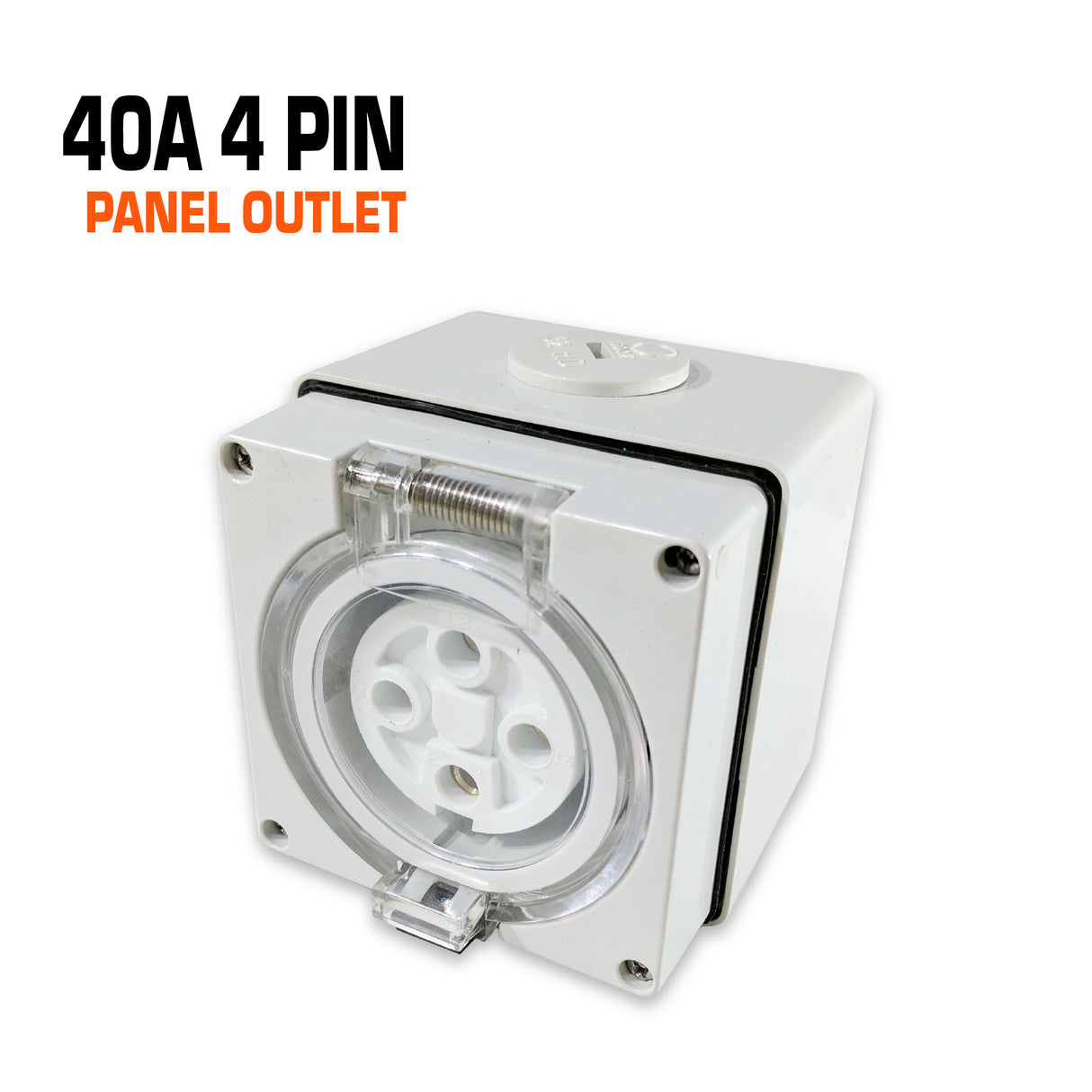

Australian Panel Outlet 40A 4 PIN

    • Our range of heavy duty Industrial Switchgear are available in single phase and three phase versions.
    • Covering a large current range from 10A to 50A with 3,4 and 5 poles contacts.
    • Switchgear are made with high impact resistant materials
    • Transparent housing for our plugs and sockets allow for quick examination of connections
    • All switchgear are rated to IP66 otherwise stated.
    • Complies with the Australian Standards backed with a 2 years manufacturer warranty.

Australian Connectors Round Pin
3 Pin 4 Pin 5 Pin Notes
10A

10A 500V
10A 500V
10A 500V
10A can plug into a 20A socket, but not the other way around.
20A 20A 250V
20A 250V
20A 500V
20A 500V
20A 500V
20A 500V
20A cannot plug into a 32A; the plug is a different size. An adaptor is needed.
32A 32A 250V
32A 250V
32A 500V
32A 500V
32A 500V
32A 500V
32A can plug into a 40A & 50A socket, but not the other way around.
40A 40A Voltage
40A 500V
40A 500V
40A 500V
40A 500V
40A can plug into a 50A socket, but not the other way around.
50A 50A Voltage
50A 500V
50A 500V
50A 500V
50A 500V
50A can only plug into a 50A socket.
  • Part Number
    AUSO440
  • Poles
    4
  • Amps
    40A
  • Voltage
    500V
  • IP Rating
    IP66
  • Material
    Plastic
  • Australian Standard
    AU/NZS 4325:1995

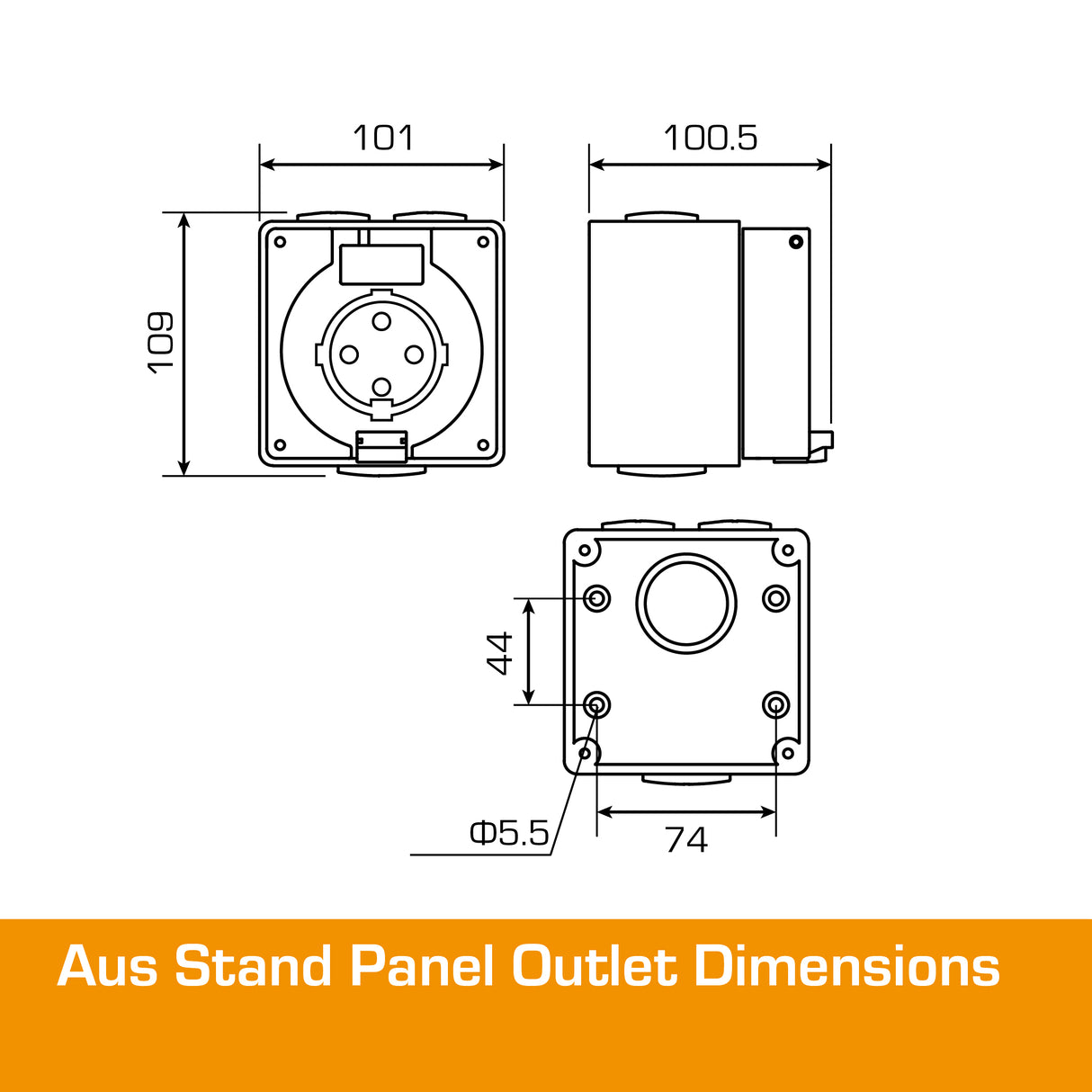

  • Dimensions
    101mm x 100.5mm x 109mm (L x W x H)
  • Brand
    GEN 3
  • Weight
    650g
