Custom-Built 3 Phase Extension Leads Ready in Just 2 Hours

Australian 20A Switched Outlet 3 Flat PIN

GEN3  |  SKU: AUCS320F
$50.82
$46.20 + GST

Ships Fast Australia Wide

30-Day Easy Returns

Trusted by Australia's Biggest Events

Pickup available at 28 Cook Street

Usually ready in 1 hour

Enjoy Free Shipping

On Orders Over $249*

Excludes heavy items & remote areas


Description

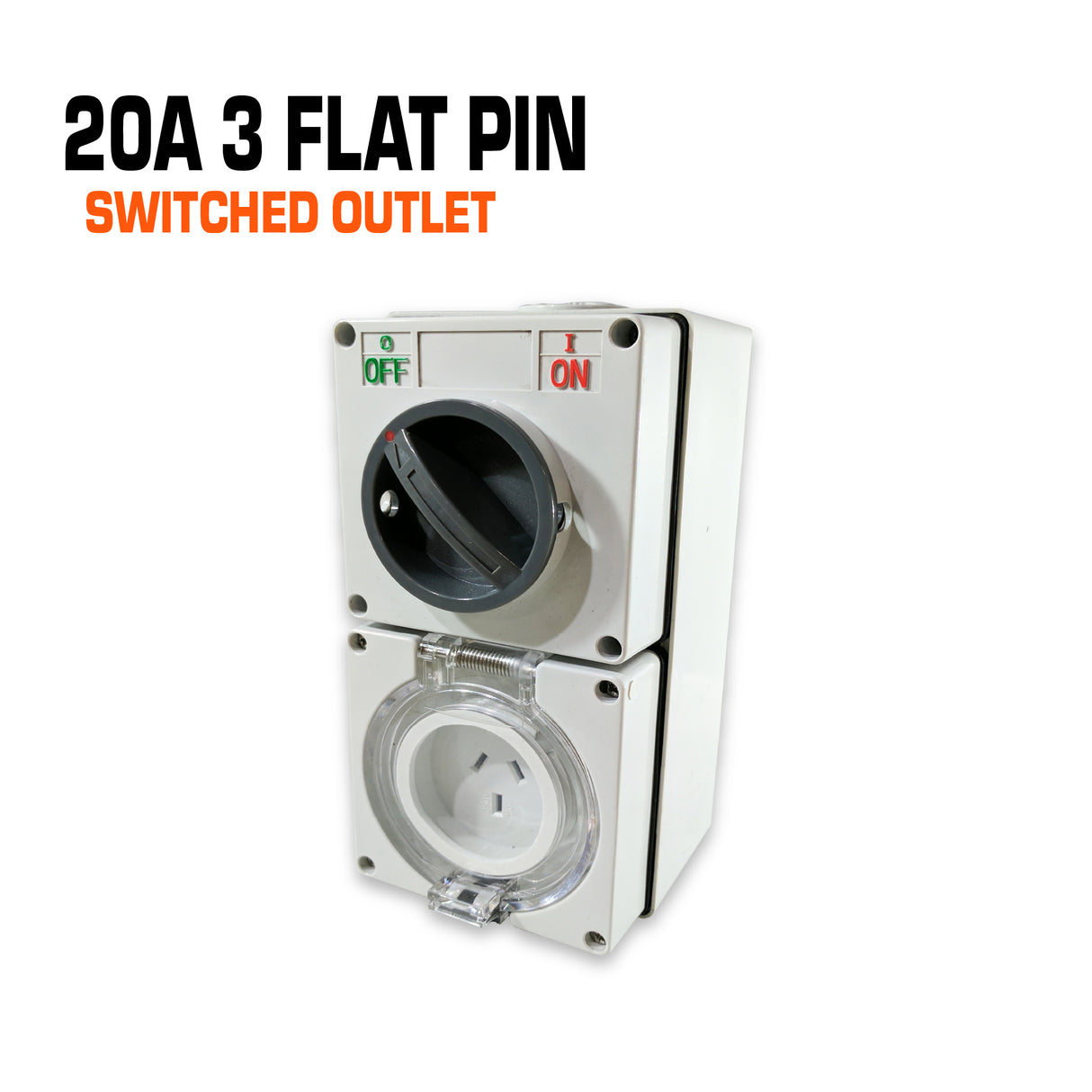

Australian 20A Switched Outlet 3 Flat PIN

  • Our range of heavy duty Industrial Switchgear are available in single phase and three phase versions.
  • Covering a large current range from 10A to 50A with 3,4 and 5 poles contacts.
  • Switchgear are made with high impact resistant materials
  • Transparent housing for our plugs and sockets allow for quick examination of connections
  • All switchgear are rated to IP66 otherwise stated.
  • Complies with the Australian Standards backed with a 2 years manufacturer warranty.

Flat Pin Notes
10A
10A 250V
Standard Australian 3 pin connector.
15A
15A 250V
15A connectors have a wider earth pin.
20A
20A 250V
All 3 pins are wider on 20A connectors.
25A
25A 250V
In addition to wider pins, the 25A earth pin has a top hook.
32A
32A 250V
The 32A earth pin also has a bottom hook for added safety.
  • Part Number
    AUCS320F
  • Poles
    3
  • Amps
    20A
  • Voltage
    250V
  • IP Rating
    IP66
  • Material
    Plastic
  • Australian Standard
    AU/NZS 4325:1995

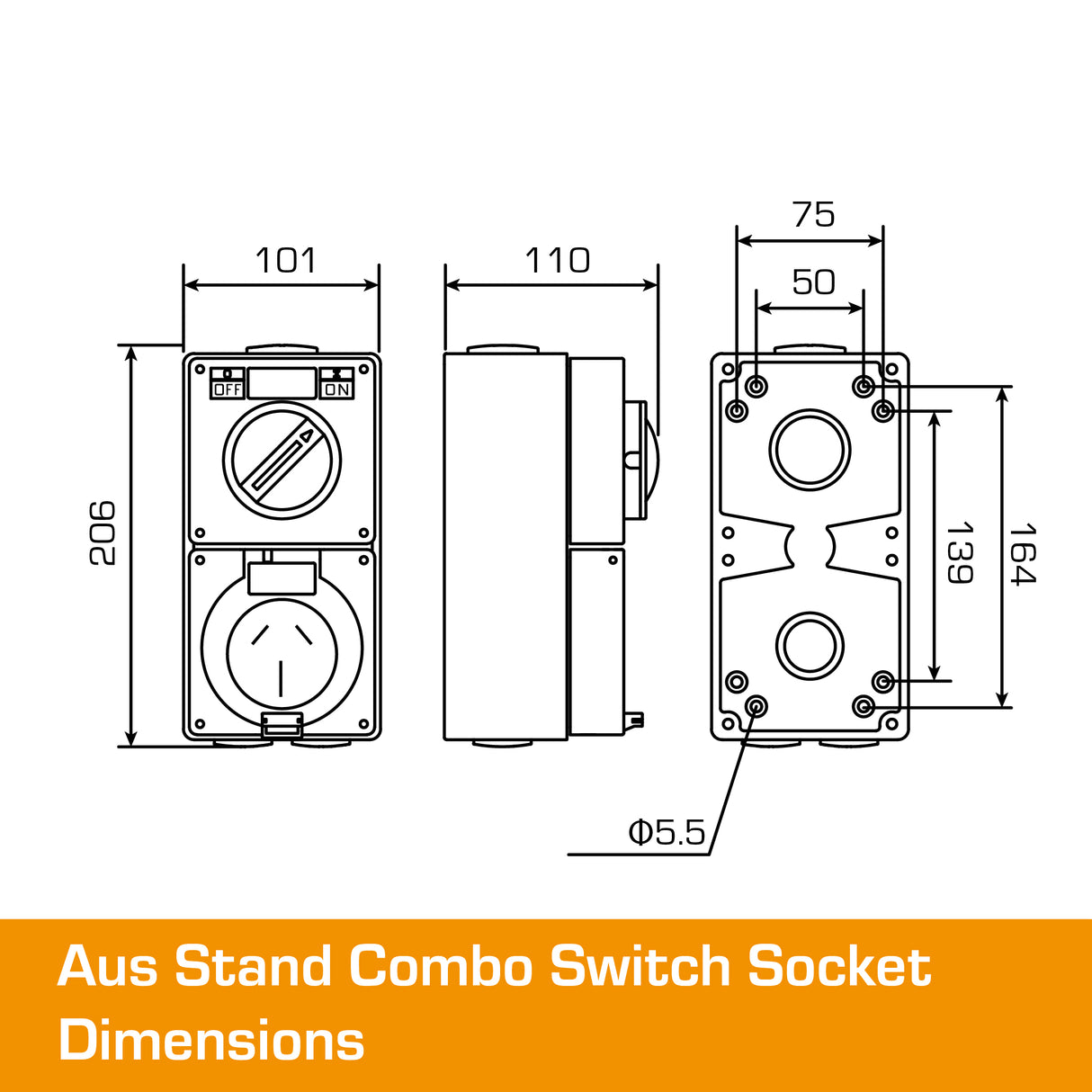

  • Dimensions
    206mm x 101mm x 110mm (L x W x H)
  • Brand
    GEN 3
  • Weight
    800g
