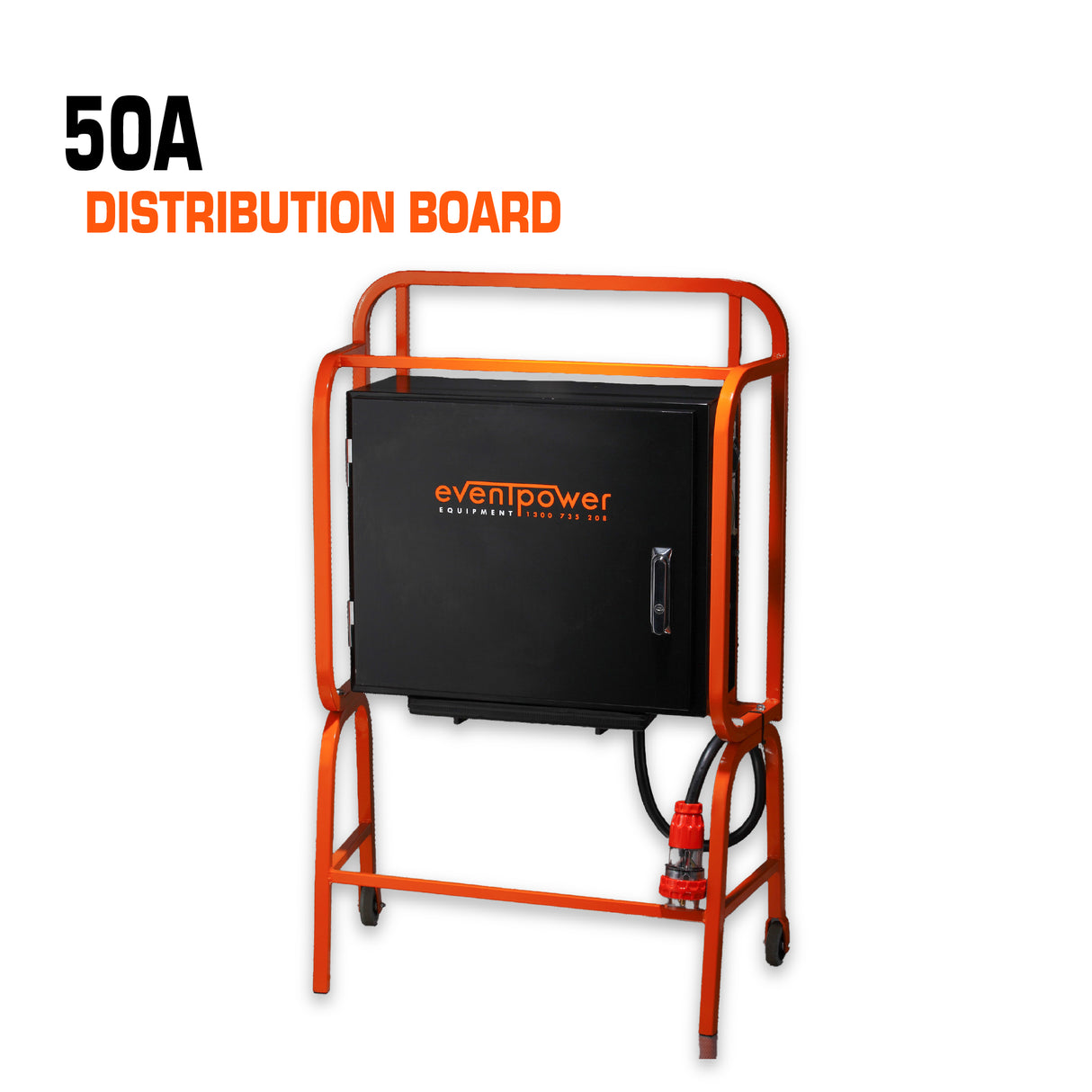

50A Three phase distribution board
An excellent portable power distribution solution for safe temporary power for any event or project. This distribution board is capable of taking a 50A source and providing power to single phase outlets to many domestic or commercial appliances.
A 32A outlet is fitting on the side for flow through to the next board or 3 phase appliance. We can fit any combination of 10A, 15A or 20A single phase outlet as desired.
We also can manufacture to your exact specification so feel free to contact us for assistance and a current quote.
Features
- Custom made weather-resistance distribution board.
- Back legs are mounted on wheel for mobility.
- Distinct safety orange power coated frame.
- Lockable door handle to prevent unauthorised access.
- Bottom entry latch for power leads.
- Built with quality parts by our skilled A grade electricians.
- Comes supplied with a current test and tag and checklist.
Specification ( Standard fitting )
|
Power in: |
|
|
Input plug: |
50A 5 pin three phase plug |
|
Plug length: |
2M 5x10mm2 Black Flex cable |
|
Main isolation switch: |
50A C curve Circuit breaker |
|
|
|
|
Power out ( inside ): |
|
|
Circuit breaker: |
6x 16A RCBO C curve |
|
Socket outlet type: |
Single phase double pole |
|
Number of 15A outlet: |
3x15A single socket GPO |
|
Number of 10A outlet: |
3x10A double socket GPO |
|
|
|
|
Power out ( side ) : |
|
|
Circuit breaker: |
32A three phase circuit breaker |
|
Socket outlet type: |
32A 5 Pin socket outlet |
|
Number of outlet: |
1 |
|
|
|
|
Dimensions: |
1225mm (H) x 630mm (W) x 320 (D) |
|
Weight: |
30kg approx for standard fitting |
|
Security |
Supplied with lock and key |
EPE DB50A 6xGPO 1x32A V2
*Picture for illustrative purposes only.
