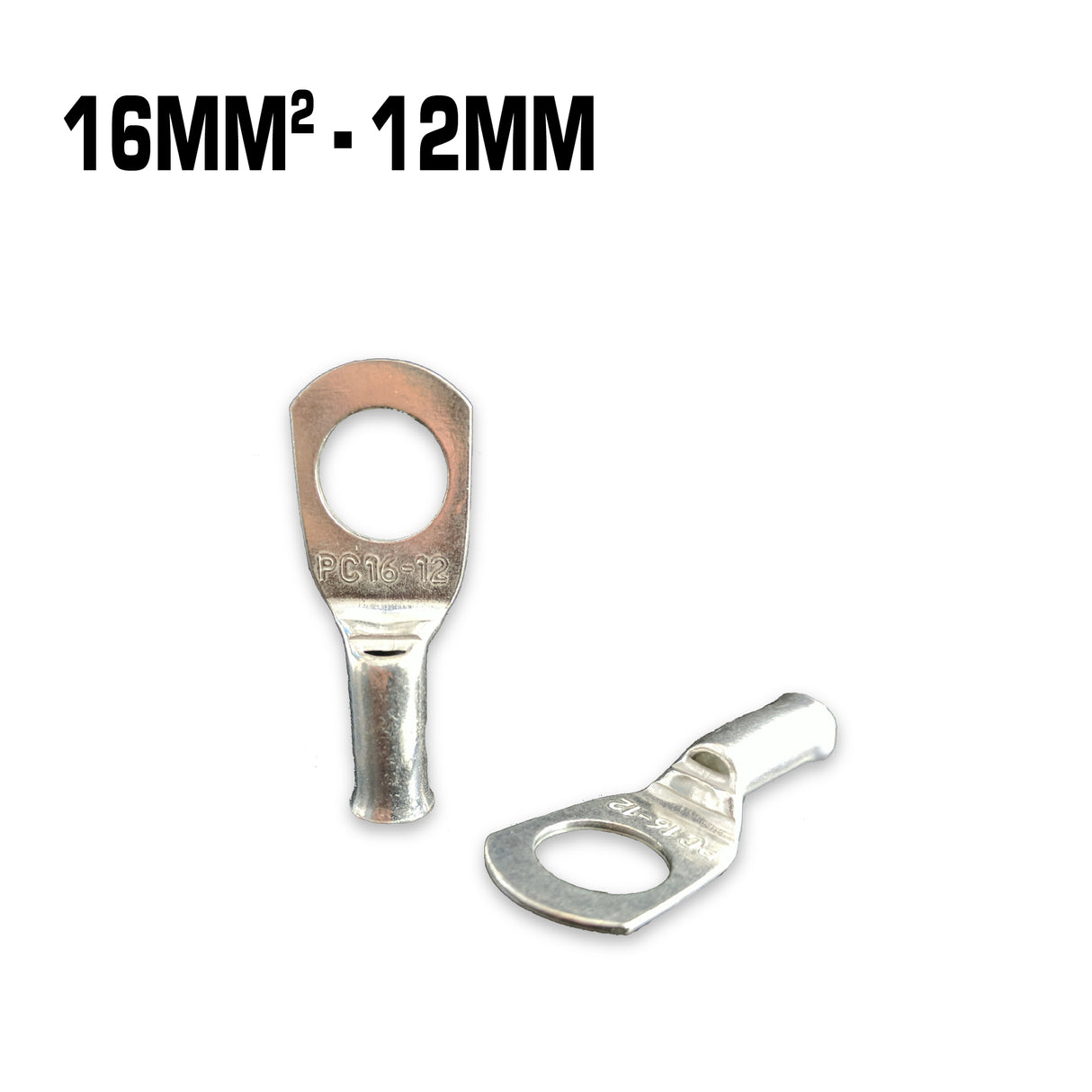

Copper Cable Lug - 16mm Lug 12mm Hole

  • Sale
  • Regular price $0.59 ( $0.54 +GST )



Copper Cable Lug - 16mm Lug 12mm Hole

Made from the highest quality and manufactured from 99.9% copper to give the best conductivity. They are tin plated to provide corrosion resistance and have a continuous operating temperature of 155 degree Celsius. For lug sizes 10mm2 and up, these lugs are bell mouthed so flexible cables are easier to terminate.

Specification

Part Number: CTL16-12
Barrel Style Flared
Copper cable suits 16mm2
Lug stud size 12
Material 99.9% Copper Tin plated
Operating Temperature 155 degree C
Standard AS/NZS 4325:1995
Pack size 1



*Picture are for illustrator purposes and may not represent the final product. We continue to improve and revise the product to provide the best quality product.
