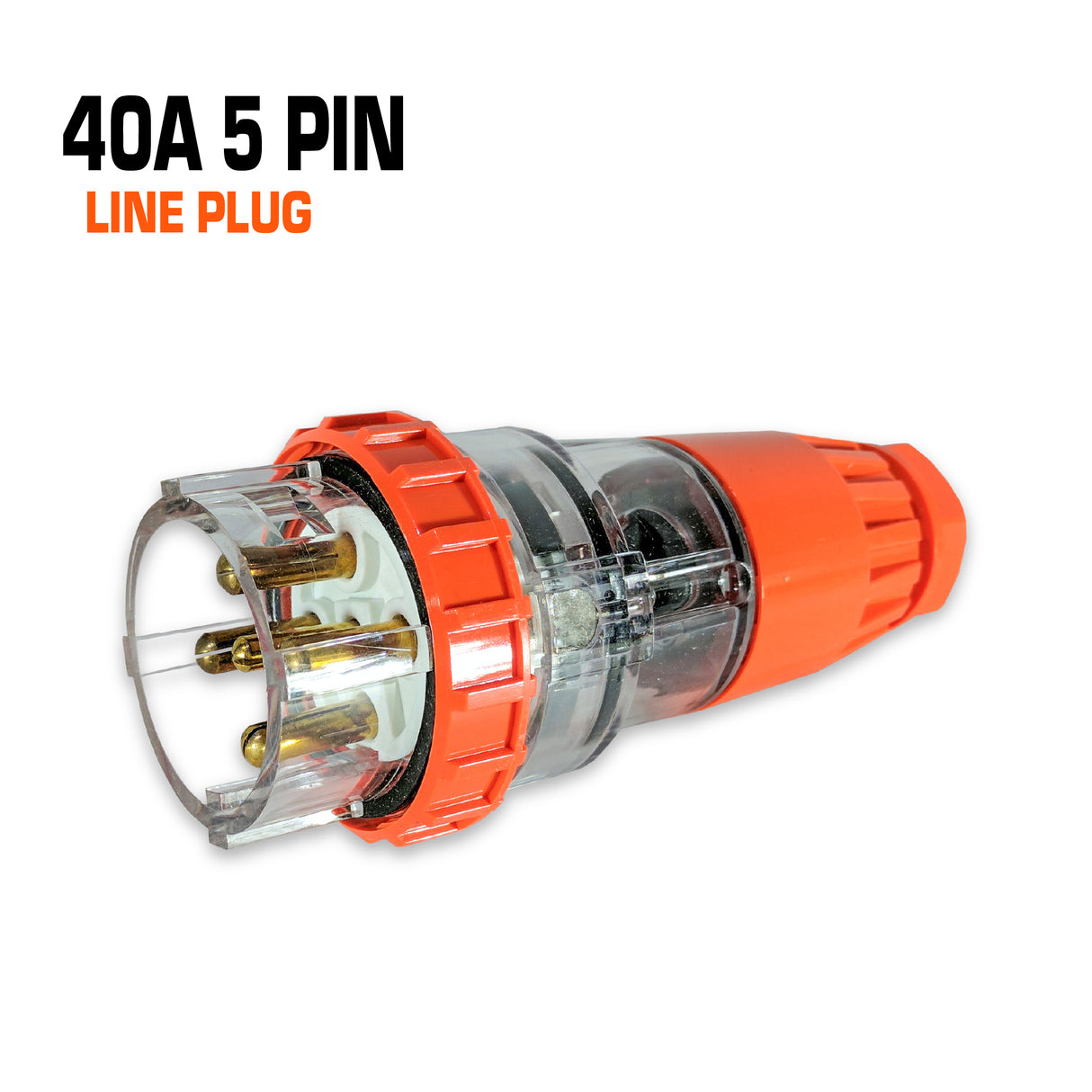

Australian 40A Three Phase Plug 5 PIN

Name: Australian 40A Three Phase Plug 5 PIN
Brand: GEN3
SKU: AUP540
Price: 55.44 AUD
Availability: InStock

GEN3 | SKU: AUP540

$60.98

$55.44 + GST

Ships Fast Australia Wide

30-Day Easy Returns

Trusted by Australia's Biggest Events

Pickup available at 28 Cook Street

Usually ready in 1 hour

Enjoy Free Shipping

On Orders Over $249*

Description

Our range of heavy duty Industrial Switchgear are available in single phase and three phase versions.
Covering a large current range from 10A to 50A with 3,4 and 5 poles contacts.
Switchgear are made with high impact resistant materials
Transparent housing for our plugs and sockets allow for quick examination of connections
All switchgear are rated to IP66 otherwise stated.
Complies with the Australian Standards backed with a 2 years manufacturer warranty.

Australian Connectors Round Pin
	3 Pin	4 Pin	5 Pin	Notes
10A		10A 500V	10A 500V	10A can plug into a 20A socket, but not the other way around.
20A	20A 250V	20A 500V	20A 500V	20A cannot plug into a 32A; the plug is a different size. An adaptor is needed.
32A	32A 250V	32A 500V	32A 500V	32A can plug into a 40A & 50A socket, but not the other way around.
40A		40A 500V	40A 500V	40A can plug into a 50A socket, but not the other way around.
50A		50A 500V	50A 500V	50A can only plug into a 50A socket.
