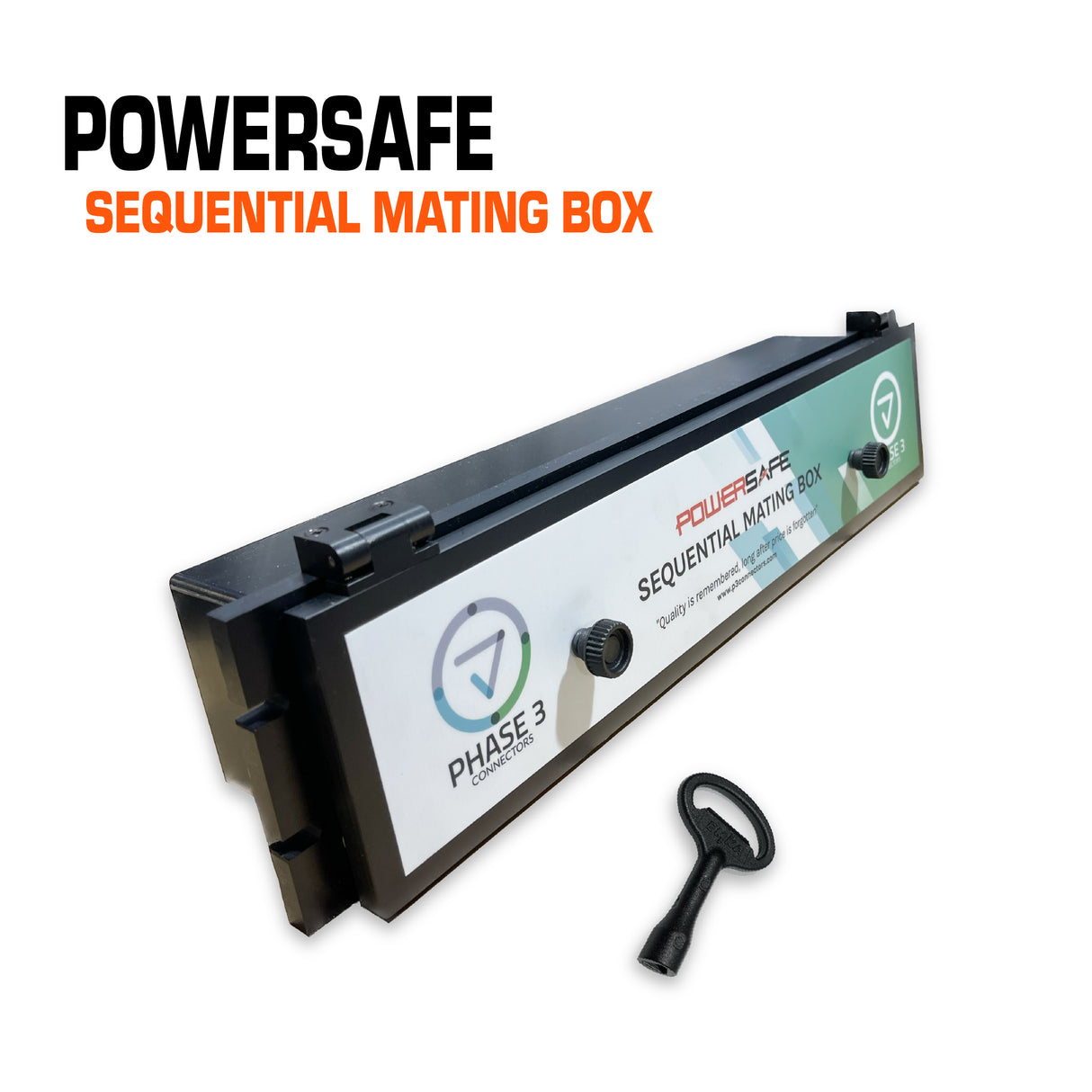

Powersafe Sequential Mating Box – your ultimate power connection solution!
Features:

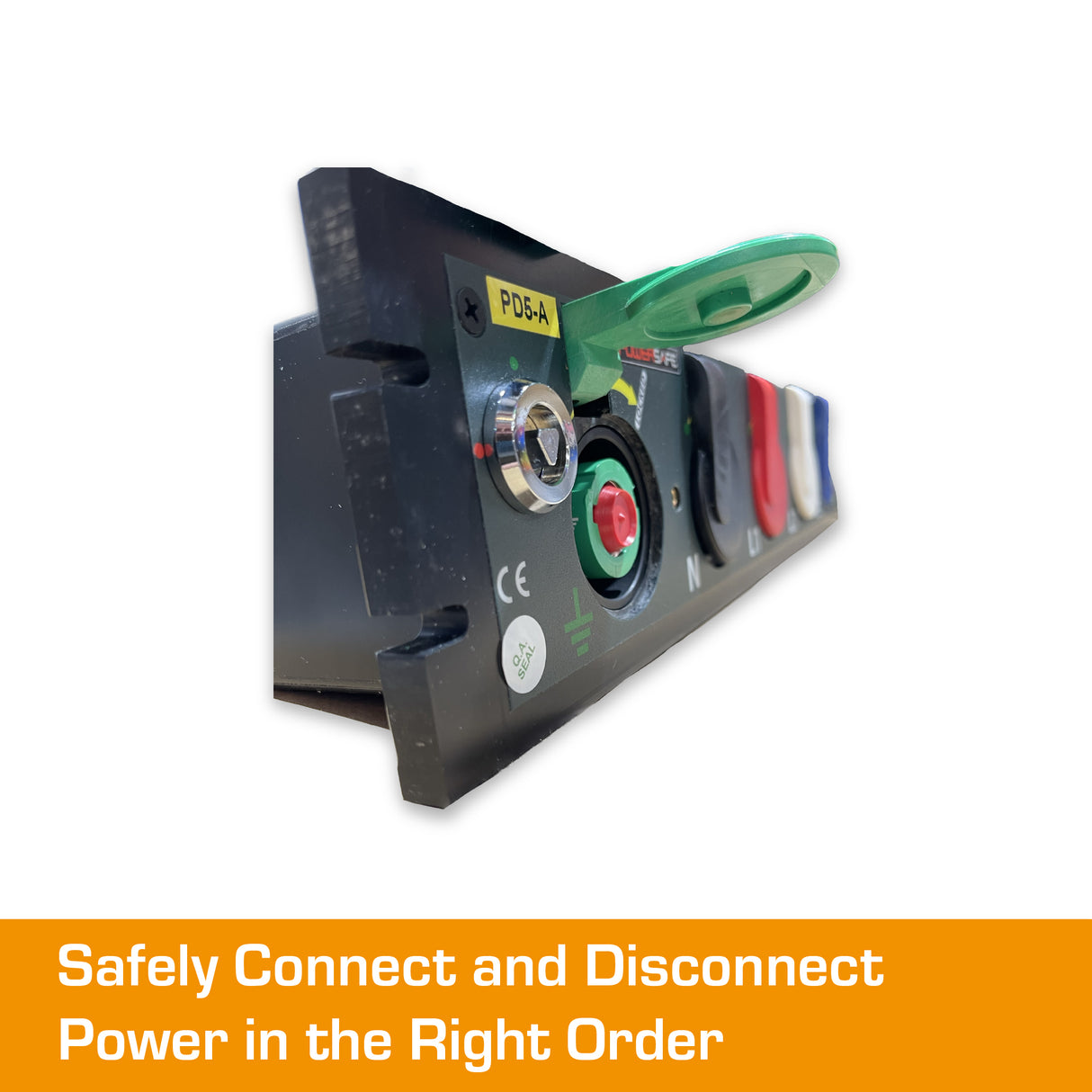

- Sequential Mating: Safely connect and disconnect power in the right order, eliminating the risk of electrical arcing and potential hazards.

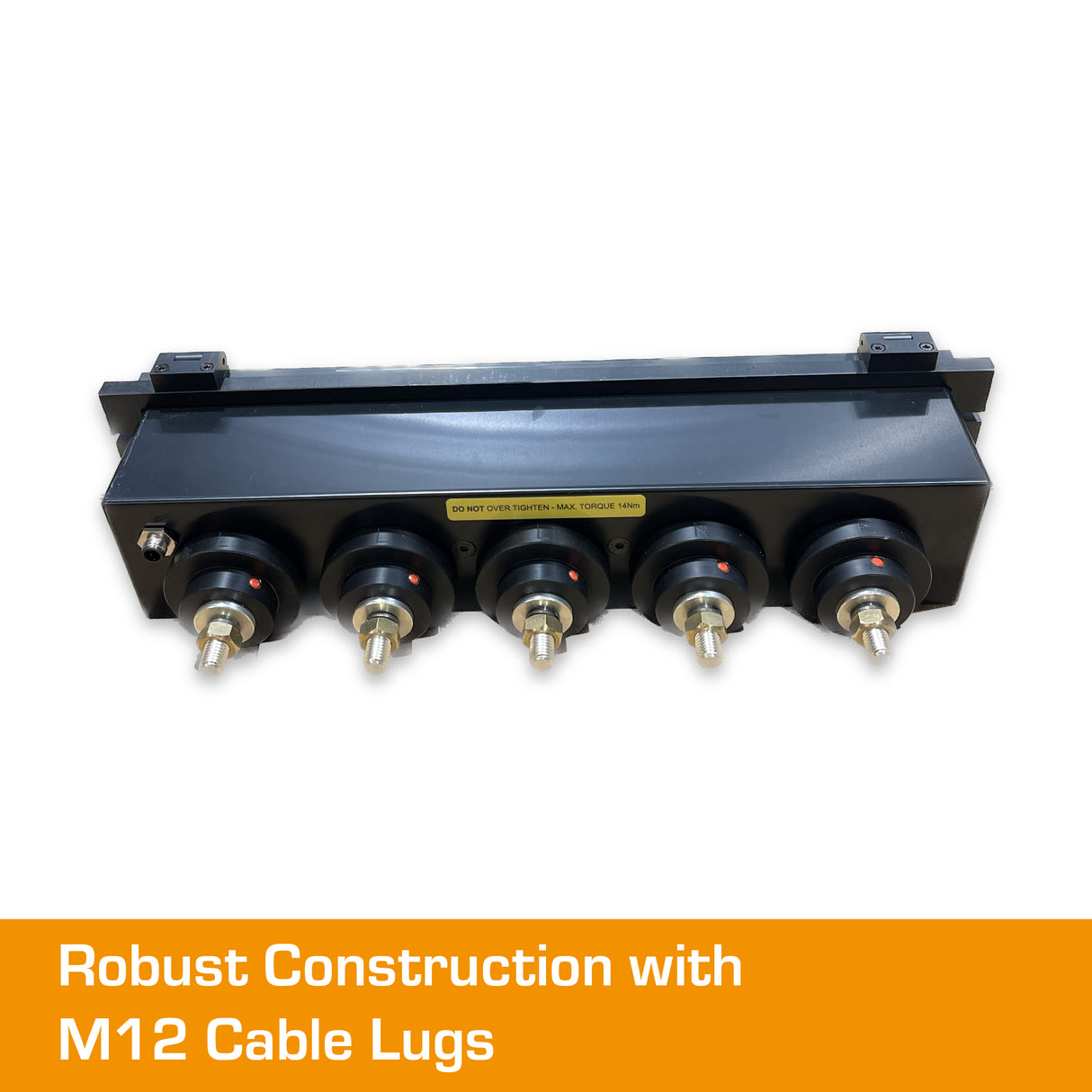

- Robust Construction: Built to withstand harsh environments, ensuring durability and reliable performance.

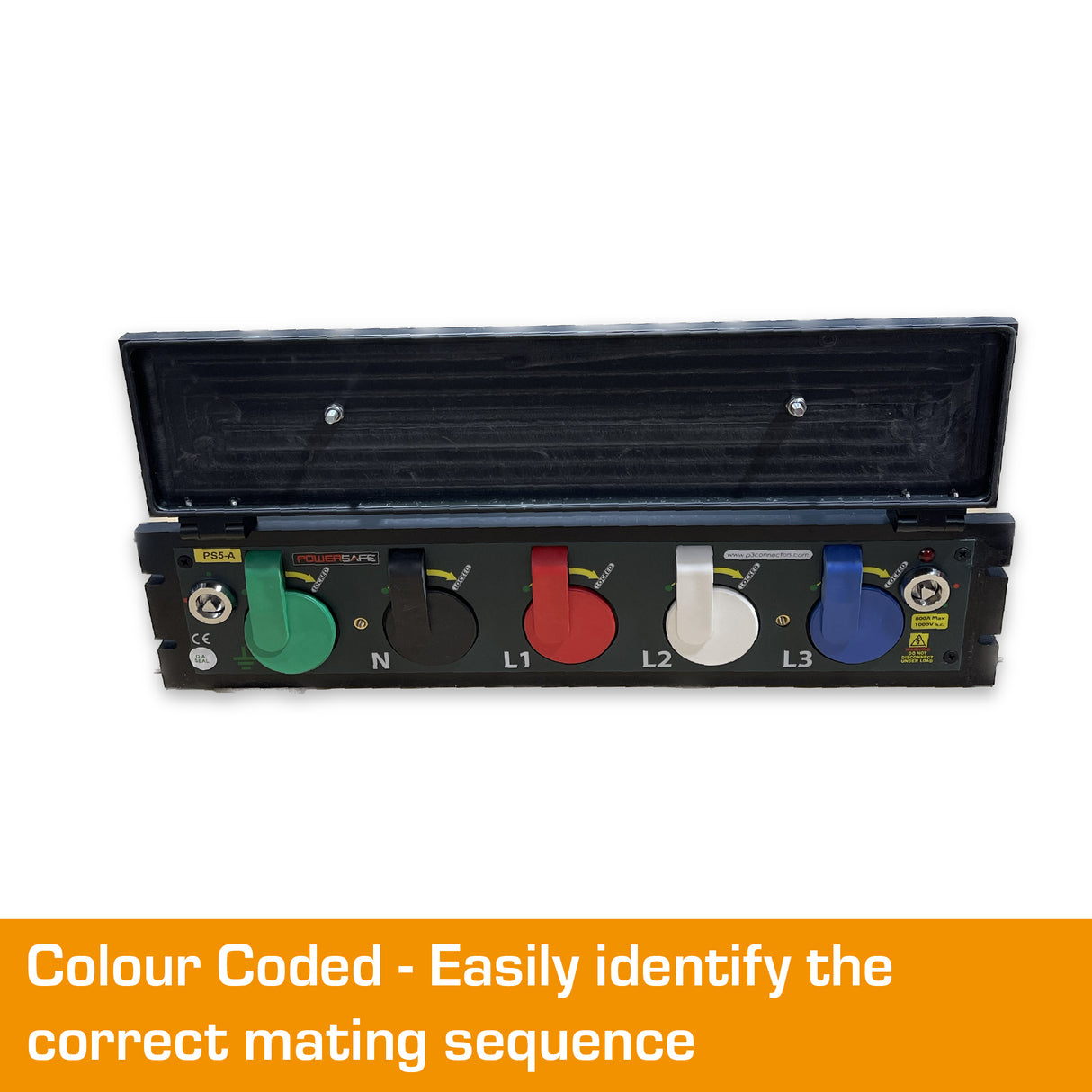

- Color-Coded: Easily identify the correct mating sequence with color-coded connectors for foolproof usage.
- Versatility: Compatible with a wide range of applications, from live events and entertainment to industrial settings.

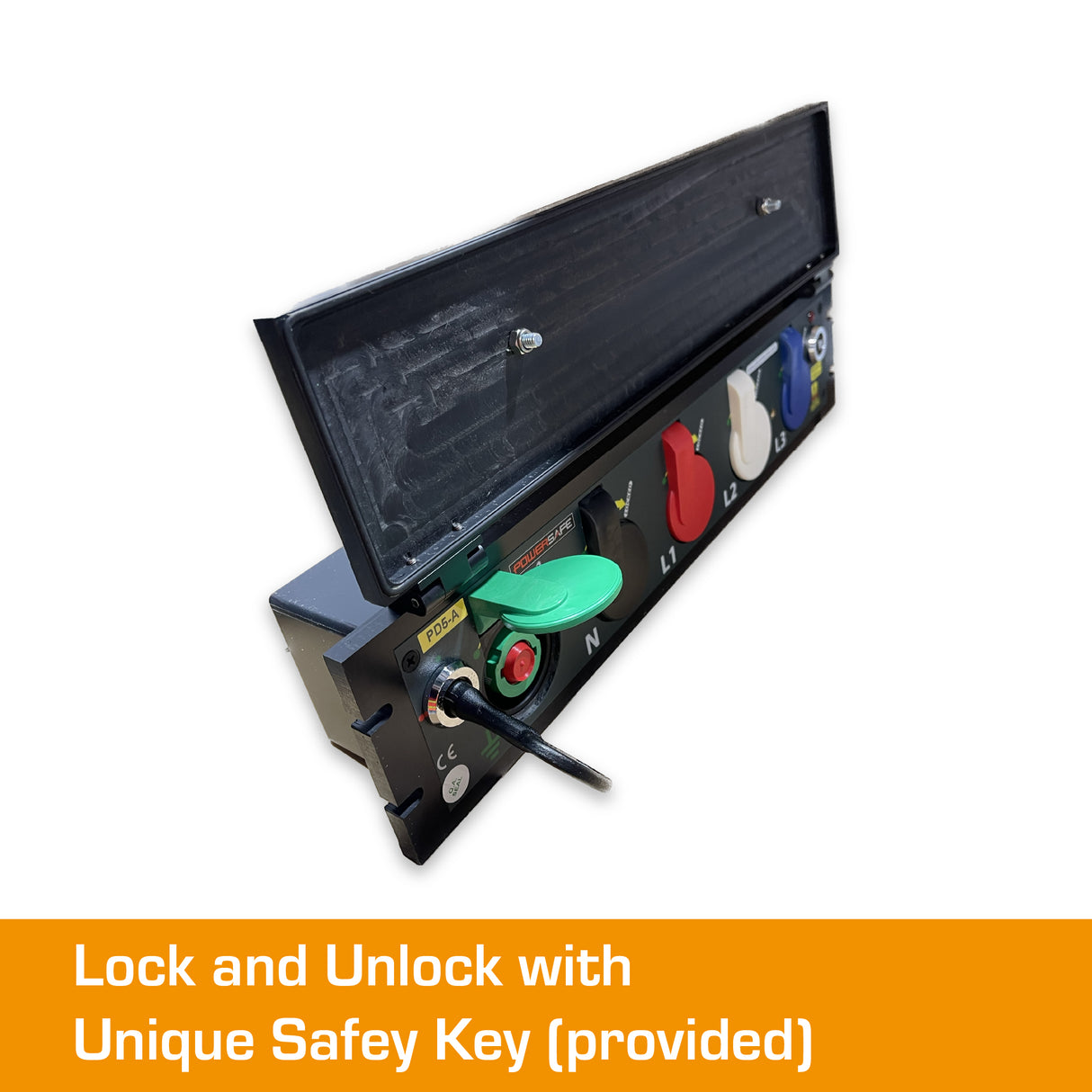

- Secure Locking: The locking mechanism guarantees a secure connection, preventing accidental disengagement.
- Time-Saving: Streamlined mating process saves valuable time during setup and dismantling.
| Model |
PD5-A-108 |
|---|---|
| Max Continuous Current Rating | Up to 800A |
| Ports | 5 p |
| Operating Voltage | 1000V AC |
| Mating Method | Bayonet Lock |
| Gender | Drain |
| Colours | AUS, EU |
| Protection type - with Lid |
IP 67 |
| Weight | 6.3Kgs |
| Dimensions | 55 × 15 × 20 cm |
*Picture are for illustrator purposes and may not represent the final product. We continue to improve and revise the product to provide the best quality product. RR
