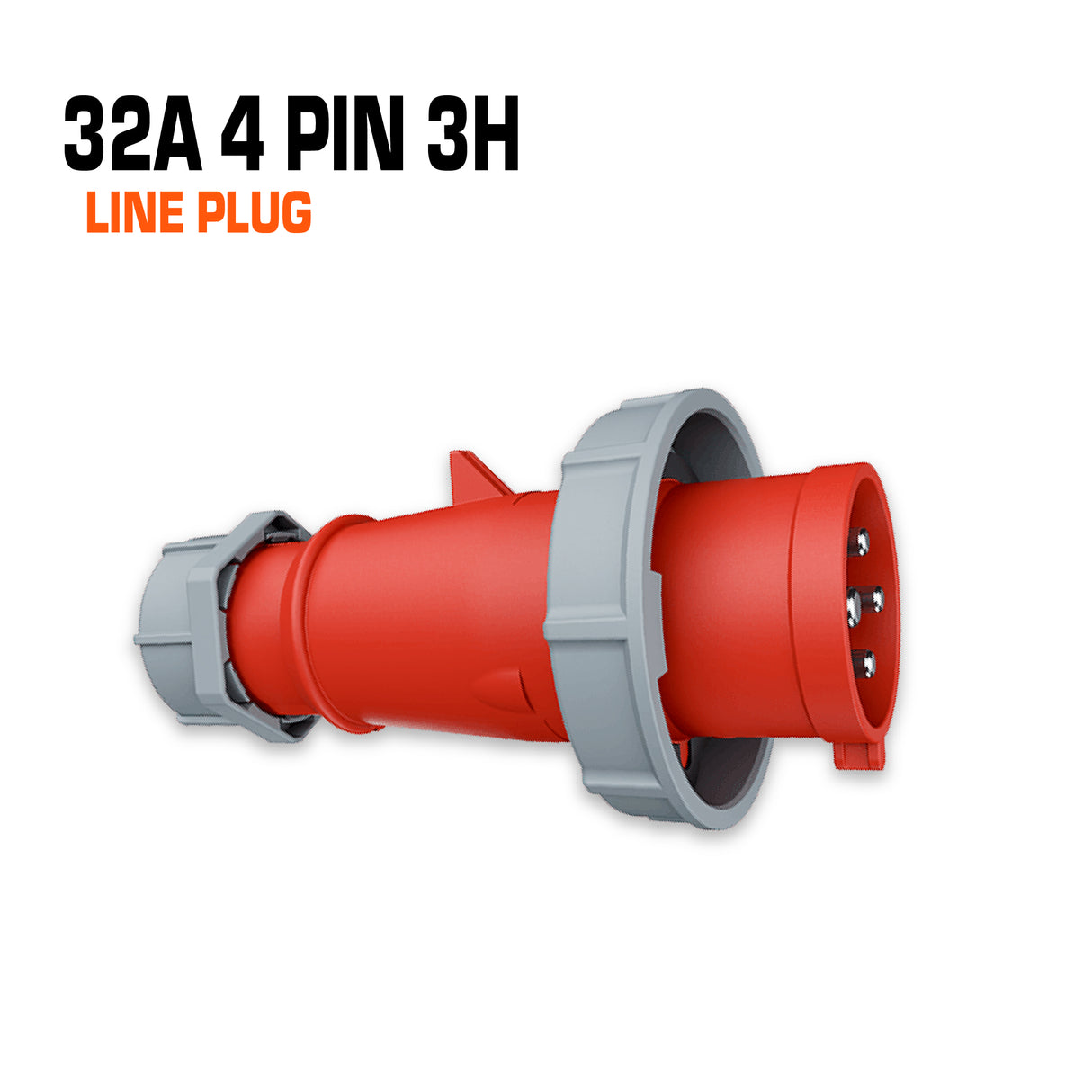

Mennekes IP67 Plug AM-TOP - 32A 4 PIN
- PN: 2175A
- Screw terminals
- highly heat resistant contact carrier
- nickel plated contacts
- single part body
- cable gland and sealing
- strain relief and protection against kinking
Ampere | 32 A |
---|---|
Poles | 4 p |
Voltage | 400-440 V |
Clock position | 3 h |
Hertz | 50-60 Hz |
Connection technology | Screw terminals |
Contact | nickel plated contacts highly heat resistant contact carrier |
Protection type | IP 67 |
Weight | 301 g |
Declaration of Conformity | DE,VDE CN,CQC |
*Picture are for illustrator purposes and may not represent the final product. We continue to improve and revise the product to provide the best quality product
